Home › Ball Bearing Units › TIMKEN QAAPL10A115S
Product Photo
TIMKEN QAAPL10A115S bearing — Dimensions on request
TIMKEN QAAPL10A115S photo 1TIMKEN QAAPL10A115S photo 2TIMKEN QAAPL10A115S photo 3
TIMKENBall Bearing Units

TIMKEN QAAPL10A115S

Ball Bearing Units · Dimensions on request

5.9 Kg13 lbWeight
✓323,474 SKUs in the online catalogue ✓OEM & custom bearings welcome ✓Reply within 30 minutes (working days) ✓Global shipping from Wuxi, China
Request a Quote → WhatsApp Us ⇄ Add to Compare
Wuxi Andge Bearing Co., Ltd.Professional bearing supplier · Wuxi, Jiangsu, China ⚡ Reply ≤ 30 min
The TIMKEN QAAPL10A115S is a Ball Bearing Units, available in the dimensions listed in the specification table below, and a unit weight of 5.9 Kg13 lb. Supplied by Wuxi Andge Bearing Co., Ltd. (AndgeBearing), a bearing manufacturer and exporter based in Wuxi, Jiangsu, China — OEM and custom bearings welcome, RFQ replied within 30 minutes on working days.

Full Specifications

BrandTIMKEN
CategoryBall Bearing Units
TypeBall Bearing Units
Dimensions (d × D × B)Dimensions on request
Weight5.9 Kg13 lb
Catalogue Ref.y6MDNHdleE
Bearing Number22210
C - Dynamic Load (Basic)26300 lb117 kN
C0 - Static Load26600 lb118 kN
Dimension A57.2 mm2.25 in
Dimension B122.2 mm4.81 in
Dimension C73.2 mm2.88 in
Dimension D Max161.5 mm6.36 in
Dimension D Min150.6 mm5.93 in
Dimension F212.9 mm8.38 in
Dimension G62.00 mm2.440 in
Dimension H31.8 mm1.25 in
Dimension J (Bolt Size)16 mm0.625 in
Dimension L79.0 mm3.11 in
Dimension M47.5 mm1.87 in
Dimension RAA17.0 mm0.67 in
Dimension SAA95.3 mm3.75 in
Eng Internal Radial Clearance - Max0.0026
Eng Internal Radial Clearance - Min0.0016
Engineering GroupMounted Bearing
Float1.270 mm0.050 in
Full Timken Part NumberQAAPL10A115ST
Grease Lubrication - B/C/O Seal1800 rpm
Grease Lubrication - M/N Seal2400 rpm
Grease Lubrication - T Seal3550 rpm
Housing ConstructionTwo-Bolt Pillow Block
Locking StyleDouble Concentric
Oil Lubrication - B/C/O Seal1800 rpm
Oil Lubrication - M/N Seal2400 rpm
Oil Lubrication - T Seal4200 rpm
Pre Install Clearance Max0.065 mm0.0026 in
Pre Install Clearance Min0.040 mm0.0016 in
Shaft Size1-15/16 in
Shaft Size TypeImperial
Shaft Tolerance0.038 mm0.0015 in
UPC Code088345026Series 6444
Y1 - Geometry Factor2.84
Y2 - Geometry Factor4.23
e - Geometry Factor0.24

Related Models

14 models in this series & categoryView all in this category →
QVVPX28V125S

QVVPX28V125S

TIMKENBall Bearing Units

📏 Dimensions on request

View Details

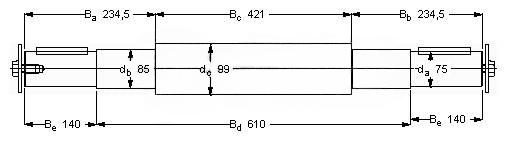

VJ-PDNB 317
