Product Details
Product Details
- TIMKEN 68514440212
- Brand:TIMKEN

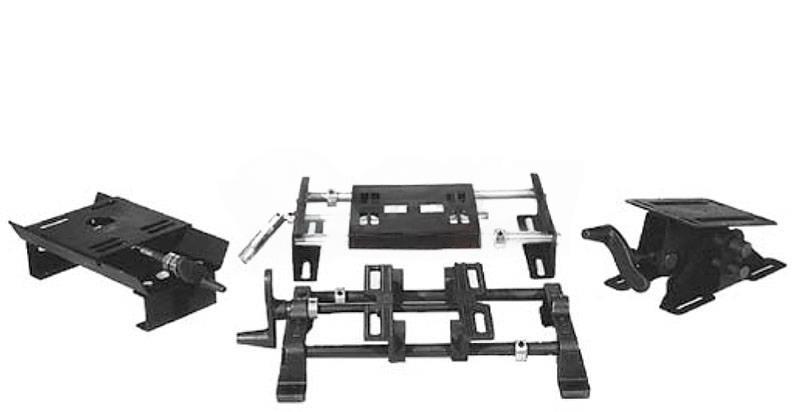

- Type series:Sliding "SMB" Type Motor Bases - Imperial
- Model:68514440212
Product parameters
| Specifications | |||
| Description | SMB-143 SLIDING MOTOR BASE | ||
|---|---|---|---|
| Model | SMB-143 | ||
| Type | Pump Mounting Bracket | ||
| Material | Steel | ||
| Application | Adjustable Center VSP Drive | ||
| Model Compatibility | For NEMA Motor Frame Sizes | ||
| Contents | One Adjustable Motor Base | ||
| Weight | 9.00 lb | ||
| UPC Number | 40212 | ||
| NEMA Frame Motor Size | 48, 56, 143T | ||
| Dimensional Data | |||
| Dimension A | 15.750 in | ||
|---|---|---|---|
| Dimension B | 320.68 mm 12.625 in | ||
| Dimension C | 203.20 mm 8.000 in | ||
| Dimension D | 8.750 in | ||
| Dimension E | 139.70 mm 5.500 in | ||
| Dimension E1 | 107.95 mm 4.250 in | ||
| Min. Dimension F | 42.07 mm 1.656 in | ||
| Max. Dimension F | 113.51 mm 4.469 in | ||
| Dimension G | 352.43 mm 13.875 in | ||
| Dimension H1 | 10.32 mm 0.406 in | ||
| Dimension I | 47.63 mm 1.875 in | ||
| Dimension J | 49.21 mm 1.938 in | ||
| Dimension K | 63.50 mm 2.500 in | ||
| Dimension L | 2.78 mm 0.109 in | ||
| Dimension M | 88.90 mm 3.500 in | ||
| Dimension N | 34.93 mm 1.375 in | ||
| Dimension O | 10.32 mm 0.406 in | ||
| Dimension P | 47.63 mm 1.875 in | ||
| Dimension Q | 35.72 mm 1.406 in | ||
| Dimension S | 177.80 mm 7.000 in | ||
| Dimension T | 5.125 in | ||
| Dimension U | 31.75 mm 1.250 in | ||
| Dimension W | 184.15 mm 7.250 in | ||
| Dimension X | 288.93 mm 11.375 in | ||
| Diameter (Dimension Y) | 0.625 in | ||
| Diamenter (Dimension Z) | 1/2-13 | ||
| Cubic inches | 706.28906 in3 | ||
| Performance Data | |||
| Travel Distance | 5 5/8 in | ||
|---|---|---|---|
| Features | |||
| Features |
| ||
|---|---|---|---|
