Product Details
Product Details
- INA DKLFA40115-2RS
- Brand: INA
- Type series: Series DKLFA..-2RS
- Model: DKLFA40115-2RS
- d : 40mm D : 72mm B : 42mm B1 : 23mm Weight: 1.5Kg
Product parameters
| Basic rated load | |||
| C (type)a | 43000 | N (type) | Basic ratingDynamic load, Axial, ← |
|---|---|---|---|
| C (type)0a | 101000 | N (type) | Basic ratingStatic load, Axial, ← |
| C (type)a | 73000 | N (type) | Basic ratingDynamic load, Axial, Main load direction H, → |
| C (type)0a | 227000 | N (type) | Basic ratingStatic load, Axial, Main load direction H, → |
| Dimensions | |||
| d | 40 | mm | Tolerance: -0,010 |
|---|---|---|---|
| D (type) | 72 | mm | Tolerance: -0,013 |
| B (type) | 42 | mm | Tolerance: -0,25 |
| A (type) | 90 | mm | - |
| B (type)1 | Series 23 | mm | - |
| D (type)1 | 115 | mm | - |
| d1 | 58 | mm | - |
| d2 | Series 8.Series 8 | mm | - |
| da max | 67 | mm | - |
| da min | 50 | mm | - |
| J | 94 | mm | - |
| r1 min | 0.6 | mm | - |
| rmin | 0.3 | mm | - |
| Description | |||

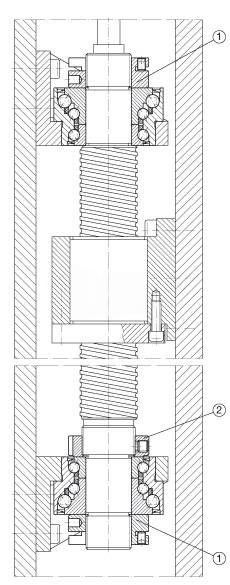

| Attention！ BearingMust be in the main load direction H Withstand continuous load. | |||
| Series 5 | μm | AxialRunout Screw supportBearingConfiguredAxialRunout based on inner ring rotation. | |
| Series 8 x M6 | Quantity x Fixing screw'sDimensions, According to DIN 912-Series 10.9 Standard Tightening torque of fixing screws must follow manufacturer's data. Screw not included in delivery. | ||
| 1) | AM40. ZMA40/Series 62 | Recommended INA Lock nut designation | |
| 2) | ZM45 | Recommended INA Lock nut designation | |
| Weight | |||
| m | 1500 | g | Mass |
|---|---|---|---|
| Limiting rotational speed | |||
| nSeries G Fett | 1500 | r/min | Grease lubricationAtLimiting rotational speed |
|---|---|---|---|
| BearingFriction torque | |||
| Series MRL | 1 | Nm | BearingFriction torque |
|---|---|---|---|
| AxialRigidity | |||
| caL | 1100 | N (type)/ m | AxialRigidity ← |
|---|---|---|---|
| caL | 1700 | N (type)/ m | AxialRigidity → |
| Tilting rigidity | |||
| ckL | 1000 | Nm/mrad | Tilting rigidity |
|---|---|---|---|
| Mass moment of inertia | |||
| Series Mm | 4.23 | kg x cm^2 | Mass moment of inertia of rotating inner ring |
|---|---|---|---|
