Product parameters
| Specifications | |||

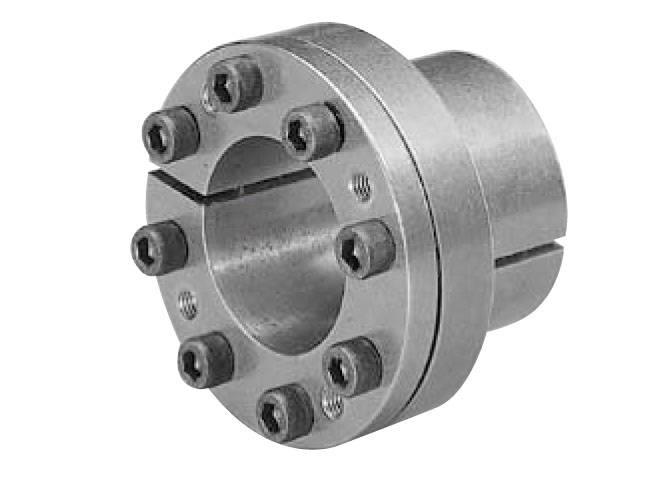

| Description | SLD 1900 MM 60X77 | ||
|---|---|---|---|
| Coupling Size | SLD1900 | ||
| Type | Internal | ||
| Collar Material | Silver/Metallic | ||
| Weight | 4.41 lb | ||
| Screw Type | Socket Head Cap Screw | ||
| Screw Material | Steel | ||
| Style | Self Centering | ||
| Application | Internal Shaft Locking Device | ||
| # of Locking Screws | Series 10 | ||

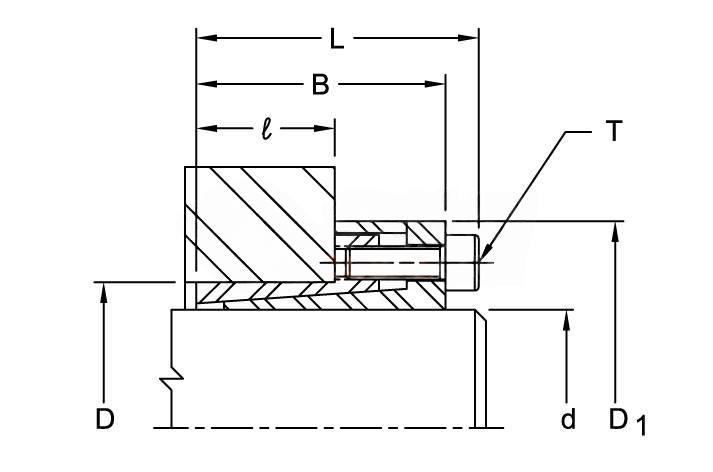

| Dimensional Data | |||
| Shaft Size | Series 60 x 77 mm | ||
|---|---|---|---|
| Hub Outside Diameter (Dimension d) | 60.00 mm 2.362 in | ||
| Tolerance of Shaft (T (type)1) | +0 -0.0018 in | ||
| Shaft Locking Device Outside Diameter (Dimension D (type)) | 77.00 mm 3.031 in | ||
| Tolerance of Hub Bore (T (type)2) | -0 +0.0018 in | ||
| Thrust Rings Width at Relaxed State (Dimension B (type)) | 75.00 mm 2.953 in | ||
| Locking Screw Size (Dimension T (type)) | M8 | ||
| Diameter to Flange (Dimension D (type)1) | 103.99 mm 4.094 in | ||
| Contact Length (Dimension l) | 50.00 mm 1.969 in | ||
| Total Width at Relaxed State (Dimension L) | 83.01 mm 3.268 in | ||
| Cubic inches | 762.58391 mm³ 30.02299 in3 | ||
| Performance Data | |||
| Max. Transmissible Axial Force | 25612.00 lbf | ||
|---|---|---|---|
| Max. Transmissible Torque | 2311.00 ft·lb | ||
| Screw Tightening Torque | 30.20 ft·lb | ||
| Pressure on The Hub | 10443.00 psi | ||
| Pressure on The Shaft | 9718.00 psi | ||
| Features | |||
| Features | Versus Traditional Keyed Connections
| ||
|---|---|---|---|
