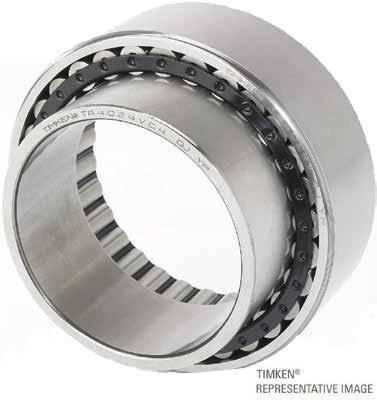

- TIMKEN TA4032V
- Brand: TIMKEN
- Type series:Cylindrical Roller Bearings
- Model: TA4032V
- Weight: 13.2Kg
Product parameters
| Specifications | |||
| Design Units | METRIC | ||
|---|---|---|---|
| Bearing Weight | 13.2 Kg Series 29 lb | ||
| Tapered Bore | N (type) | ||

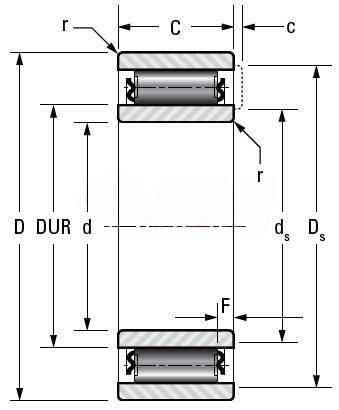

| Dimensions | |||
| d - Bore | 160.00 mm 6.2992 in | ||
|---|---|---|---|
| D (type) - Outer Diameter | 240.00 mm 9.4488 in | ||
| C (type) - Inner Ring Width | 80 mm 3.1496 in | ||
| B (type) - Outer Ring Width | 80 mm 3.1496 in | ||
| DUR - Diameter Under Roller | 180.600 mm 7.1102 in | ||
| F (type) - Float | 6.000 mm 0.2362 in | ||
| Basic Load Ratings | |||
| C0 - Static Radial Rating | 377000 lbf 1680000 N (type) | ||
|---|---|---|---|
| Abutment and Fillet Dimensions | |||
| da - Inner Ring Backing Diameter | 178.500 mm 7.028 in | ||
|---|---|---|---|
| Da - Outer Ring Backing Diameter | 223.000 mm Series 8.780 in | ||
