Product Details
Product Details
- INA MLFI140-3ZR
- Brand:INA
- Type series:MLFI..-3ZR
- Model:MLFI140-3ZR
- H : 105mm B : 176mm L : 240mm Weight:5.5Kg
Product parameters

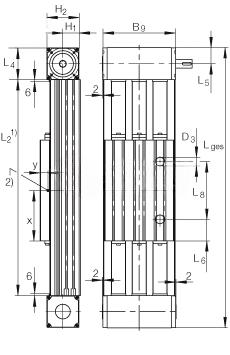

| Dimensions | |||
| H2 | 85.5 | mm | - |
|---|---|---|---|
| H3 | 25 | mm | 8 mm |
| H4 | 74.5 | mm | - |
| H5 | 45 | mm | 5 mm |
| L1 | 282 | mm | - |
| L4 | 80 | mm | - |
| L5 | 40 | mm | - |
| L6 | 73 | mm | T Type |
| L8 | 94 | mm | - |
| O | M6 | - | |
| X | 120 | mm | - |
| Y | 24 | mm | - |
| ly | 1636 | cm^4 | Dynamic |
| lz | 200 | cm^4 | Dynamic |
| H | 105 | mm | - |
| B | 176 | mm | - |
| L | 240 | mm | - |
| B2 | 80 | mm | 8 mm |
| B3 | 130 | mm | 8 mm |
| B5 | 70 | mm | 8 mm |
| B6 | 140 | mm | 8 mm |
| B7 | 180 | mm | - |
| B8 | 8 | mm | Tolerance:P9; DIN 6885-1 Standard type A |
| B9 | 195 | mm | - |
| D | 80 | mm | - |
| D3 | 30 | mm | T Type |
| H1 | 45.5 | mm | - |
| Weight | |||
| mLaw | 5500 | g | Quality |
|---|---|---|---|
| mtot | (Ltot - 160) x 0.0138 + 12.7 | kg | Quality |
| Fy per | 2400 | N | Guide rail ,CompleteUsage. ,. |
|---|---|---|---|
| F0y per | 4000 | N | Guide rail ,CompleteUsage. ,. |
| Fz per | 4500 | N | Guide rail ,CompleteUsage. ,. |
| F0z per | 4500 | N | Guide rail ,CompleteUsage. ,. |
| Static | |||
| M0x per | 320 | Nm | Guide rail ,CompleteUsage. ,. |
|---|---|---|---|
| M0y per | 210 | Nm | Guide rail ,CompleteUsage. ,. |
| M0z per | 180 | Nm | Guide rail ,CompleteUsage. ,. |
| Description | |||
| 1) | L2 = + L1 + 12 L tot = + L1 + 12 + 2 x L4 = + 2 x S(mm) :S,85 mm. MaximumLength8000 mm. | ||
|---|---|---|---|
| 2) | DIN 3405-AM6 Standard typeTypeLubrication | ||
| 3 x 40 AT 10 | With | ||
| 4500 | N | With | |
| 115 | Nm | MaximumDynamic | |
| 0.75 | kg/m | WithQuality | |
| 160 | mm/Umdr | (mm/) | |
| 8.2 x 10^-4 | kg x m^2 | Quality | |
