Product Details
Product Details
- INA LTP15-185-2005
- Brand:INA
- Type series:LTP
- Model:LTP15-185-2005
- H : 75mm A : 185mm L1 : 180mm
Product parameters
| Basic rated load | |||
| C0 | 37000 | N | Basic rated load: Y II: BallBearingBasic rated load. Basicsame. |
|---|---|---|---|
| C | 17100 | N | Basic rated load: Z III: BallBearingBasic rated load. Basicsame. |
| C | 14000 | N | Basic rated load Basic ratingDynamic load C Dynamic load 1978 DIN 69 051,4. |
| C0 | 17000 | N | Basic rated load Basic ratingStatic load Co. |
| C | 17900 | N | LocatingBearingMaximumAxial Basic ratingDynamic load C |
| C0 | 28000 | N | LocatingBearingMaximumAxial Basic ratingStatic load Co |
| Rated | |||
| M0x | 2130 | Nm | Rated: Basic rated load. Basicsame. |
|---|---|---|---|
| M0y | 2170 | Nm | Rated: Basic rated load. Basicsame. |
| M0z | 2170 | Nm | Rated: Basic rated load. Basicsame. |

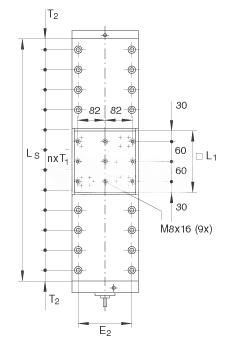

| Dimensions | |||
| H | 75 | mm | - |
|---|---|---|---|
| A | 185 | mm | - |
| L1 | 180 | mm | - |
| a | 80 | mm | Tolerance: +/-0,2 |
| B1 | 25 | mm | - |
| B2 | 35 | mm | - |
| b | 33 | mm | Tolerance: +/-0,2 |
| d1 | 11 | mm | Tolerance:h6 |
| d2 | 60 | mm | Tolerance: 0 / -0,01 |
| E2 | 160 | mm | - |
| G1 | 74.5 | mm | Lubrication: 1x BallBearingandGuide rail |
| G3 | 6.5 | mm | Lubrication: 1x Locating Bearing |
| G4 | 14 | mm | Lubrication: 1x LocatingBearing |
| g1 | 11 | mm | Lubrication: 1x BallBearingandGuide rail |
| g3 | 26 | mm | Lubrication: 1x Locating Bearing |
| g4 | 0 | mm | Lubrication: 1x LocatingBearing |
| H1 | 34 | mm | - |
| H2 | 40 | mm | - |
| h1 | 23 | mm | - |
| L2 | 42 | mm | - |
| L3 | 23 | mm | - |
| L4 | 8 | mm | - |
| Ltot | GH x 1.35 + 273 | Used forStandard type. Standard typeProduct,: L tot = A + B1 + B2 + and Xmin = (A/2) + B2 (GH = ) | |
| R | 116 | mm | - |
| Rx | 118 | mm | - |
| S3 | 9 | mm | - |
| S3 | 15 | mm | Diameter |
| S4 | M6x15 | : M..x | |
| T1 | 60 | mm | - |
| Xmin | GH x 0.176 + 142 | Used forStandard type. Standard typeProduct,: L tot = A + B1 + B2 + and Xmin = (A/2) + B2 (GH = ) | |
| Weight | |||
| mtot | Ltot x 0.020 + 3.8/ 3 | kg | /Quality: TypeDesign L tot x 0,02 + 3,8 / 3 |
|---|---|---|---|
| Description | |||
| M8x1 | Lubrication | ||
| KUE 15 | H | RollerBearingandGuide rail | |
| 20 / 05 | mm | Shaft: Diameter/ | |
| F / FM | F = WithFlange,. FM = WithFlange,Design | ||
| ZKLF1560-2RS | DynamicBearing | ||
| Guide railDesign,PF1. | |||
