- INA LFKL25-SF
- Brand:INA
- Type series:Other Special Customized Bearings
- Model:LFKL25-SF
- H1 : 23.5mm B : 65mm L : 85mm Weight:0.3Kg
Product parameters
| RatedDynamic | |||
| Mz | 31 | Nm | Z ShaftRatedDynamic |
|---|---|---|---|
| Mx | 13 | Nm | X ShaftRatedDynamic |
| My | 58 | Nm | Y ShaftRatedDynamic |
| RatedStatic | |||
| M0z | 18 | Nm | Z ShaftRatedStatic |
|---|---|---|---|
| M0x | 8 | Nm | X ShaftRatedStatic |
| M0y | 40 | Nm | Y ShaftRatedStatic |
| Description | |||
| Model: - Design: :LFCL..-RB Guide rail:LFS..-RB :LFR..-2RSR-RB - WithGuide rail: LFS..-OL | |||
| LFR50/5-6-2Z | Usage ShaftDiameter:6 mm forReplacementPart,. | ||
| LFS25 | Guide railBasic rated loadRated | ||

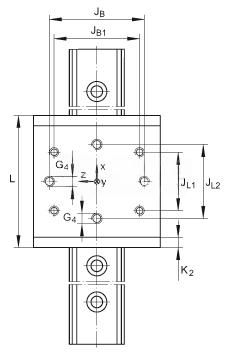

| Dimensions | |||
| H1 | 23.5 | mm | - |
|---|---|---|---|
| B | 65 | mm | - |
| L | 85 | mm | - |
| G4 | M5 | - | |
| H | Guide railHeight: H = 25 mm LFS,-C,-CE,-CEE,-E,-EE,-N,-NZZ H = 56 mm LFS..-M Guide rail LFS..-M WithUsage. Usage SF LFKL, | ||
| H2 | 14.4 | mm | Tolerance: +0,3 |
| H3 | 9 | mm | - |
| JB | 50 | mm | Tolerance: +/-0,2 |
| JB1 | 40 | mm | - |
| JL1 | 45 | mm | - |
| JL2 | 60 | mm | Tolerance: +/-0,2 |
| K2 | 5 | mm | - |
| Weight | |||
| mW | 300 | g | Quality |
|---|---|---|---|
| MA | 2.5 | Nm | Used forStandard typeDesign. , MA. |
|---|---|---|---|
| Basic rated load | |||
| Cy | 1280 | N | y Basic ratingDynamic load |
|---|---|---|---|
| C0y | 820 | N | y Basic ratingStatic load |
| Cz | 2580 | N | z Basic ratingDynamic load |
| C0z | 1800 | N | z Basic ratingStatic load |
