Product Details
Product Details
- INA KUVE20-W
- Brand: INA
- Type series: Series KUVE..-W
- Model: KUVE20-W
- B : 80mm L : 69.8mm Weight: 0.5Kg
Product parameters
| Description | |||
| K (type)1 | M4 | According to DIN ISO 4762-12.9Screw of MaximumLocking torque (Nm) : M3 = 2,Series 5 M4 = Series 5 M5 = Series 10 M6 = 17 M8 = Series 41 M10 = 83 M12 = 140 M14 = 220 M16 = 340 If possible, Screw locking measures required. | |
|---|---|---|---|
| K (type)3 | M5 | According to DIN ISO 4762-12.9Screw of MaximumLocking torque (Nm) : M3 = 2,Series 5 M4 = Series 5 M5 = Series 10 M6 = 17 M8 = Series 41 M10 = 83 M12 = 140 M14 = 220 M16 = 340 If possible, Screw locking measures required. | |
| K (type)6 | M5 | According to DIN 7984-Series 8.Series 8 Standard screw MaximumLocking torque (Nm) : M4 = 2 M5 = 4 M8 = Series 12 If possible, Screw locking measures required. | |
| According to DIN 636,Basic rated loadCalculation of, Basic ratingDynamic loadBased on practical experience. | |||
| 1) | Locating surface | ||
| 2) | Marking | ||
| 3) | According to DIN 71 412-B (type) M5 Standard, Tapered lubrication nipple supplied loose | ||
| Series G2 | M6 | According to DIN ISO 4762-12.9Screw of MaximumLocking torque (Nm) : M5 = Series 5,Series 8 M6 = Series 10 M8 = 24 M10 = Series 41 M12 = 83 M14 = 140 If possible, Screw locking measures required. | |

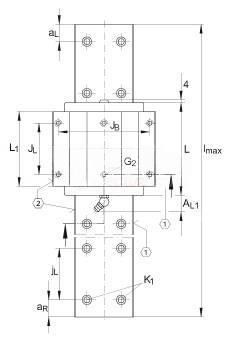

| Dimensions | |||
| L1 | 50.4 | mm | - |
|---|---|---|---|
| lmax | 1980 | mm | Of single guidewayMaximumLength; Longer guideways can be supplied in sections, And marked accordingly. According to contract, Single guidewayMaximumLength up to6Meter. |
| T (type)Series 5 | Series 10 | mm | - |
| T (type)6 | 6 | mm | For mounting from above: MaximumThread depth of intermediate threaded hole T6 + 2,Series 5 mm |
| H | 27 | mm | - |
| B (type) | 80 | mm | - |
| L | 69.Series 8 | mm | - |
| A (type)1 | Series 19 | mm | - |
| A (type)2 | Series 5 | mm | - |
| A (type)3 | Series 5 | mm | - |
| A (type)L1 | Series 19 | mm | - |
| aSeries 5 | Series 9 | mm | - |
| aL max | 53 | mm | a L And a R Depends on guideway length l max |
| aL min | Series 20 | mm | a L And a R Depends on guideway length l max |
| aR max | 53 | mm | a L And a R Depends on guideway length l max |
| aR min | Series 20 | mm | a L And a R Depends on guideway length l max |
| b | 42 | mm | Tolerance: -0,005 / -0,03 |
| H1 | 4.6 | mm | - |
| H4 | Series 10.6 | mm | - |
| HSeries 5 | Series 5 | mm | - |
| h | 17 | mm | - |
| h1 | Series 10 | mm | - |
| JB (type) | 70 | mm | - |
| JL | 40 | mm | - |
| jB (type) | 24 | mm | - |
| jL | Series 60 | mm | - |
| Weight | |||
| mW (type) | 500 | g | Mass of carriage |
|---|---|---|---|
| mS | Series 5 | kg/m | Mass of guideway |
| Basic rated load | |||
| C (type) | 13100 | N (type) | Basic ratingDynamic load |
|---|---|---|---|
| C (type)0 | 27000 | N (type) | Basic ratingStatic load |
| Rated static torque | |||
| Series M0x | 687 | Nm | Around X Rated static torque of shaft |
|---|---|---|---|
| Series M0y | 240 | Nm | Around Y Rated static torque of shaft |
| Series M0z | 240 | Nm | Around Z Rated static torque of shaft |
