Product Details
Product Details

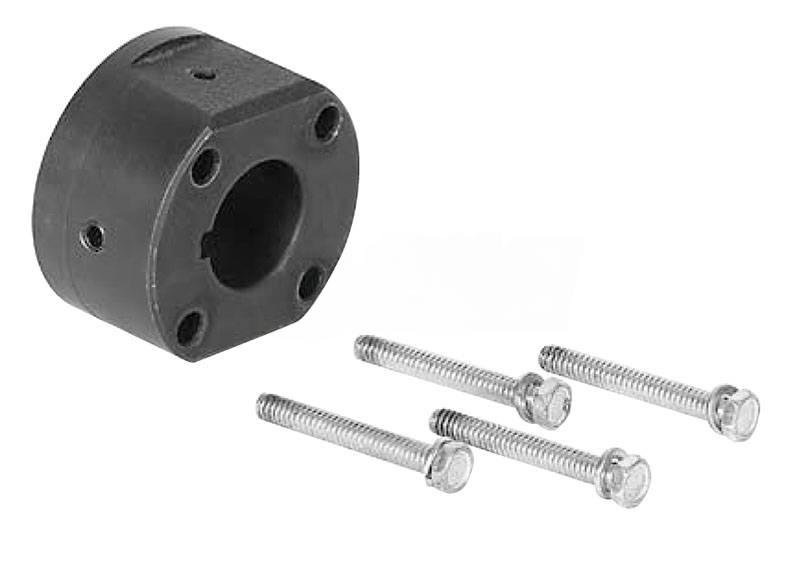

- TIMKEN 68514436751
- Brand: TIMKEN
- Type series: SC Type Spacer Coupling Hubs with Rough Stock Bore, Standard Length
- Model: 68514436751
Product parameters
| Specifications | |||
| Description | 13SCH SPCR HUB 1-3/Series 8 N (type)/KW RSB | ||
|---|---|---|---|
| Coupling Type | Coupling Hubs | ||
| Hub # | 13SCH | ||
| Material | Cast Iron | ||
| Color | Gray | ||
| Bore Type | Rough Stock Bore | ||
| # of Cap Screws Required | 4 | ||
| Coupling Type | S-Flex | ||
| Weight | 19.90 lb | ||

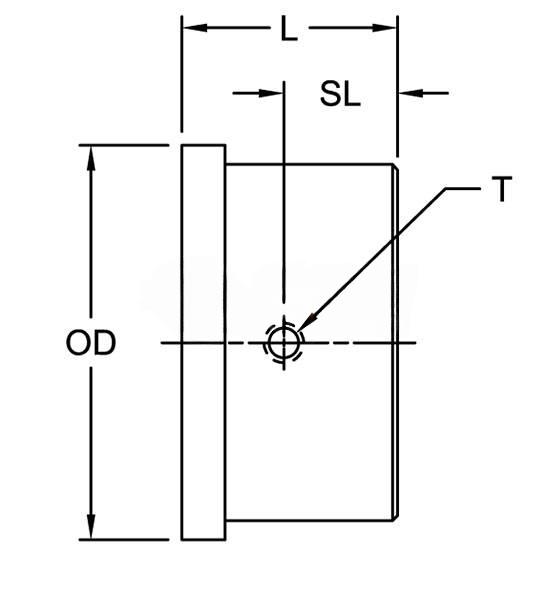

| Dimensional Data | |||
| Bore Size | 1 3/Series 8 in | ||
|---|---|---|---|
| Thread (Dimension T (type)) | 3/4-Series 10 | ||
| Keyway Size (W (type) x D (type)) | No Keyway | ||
| Outside Diameter | 155.70 mm 6.130 in | ||
| Max. Bore | 3.375 in | ||
| Dimension L | 84.84 mm 3.340 in | ||
| Dimension SL | 41.91 mm 1.650 in | ||
| Cap Screw Required Size | Series 5/Series 8 - 4-3/4 | ||
| Performance Data | |||
| Nominal Torque (with EPDM Sleeve) | 11350 in·lb | ||
|---|---|---|---|
| Max. Speed | 2400.00 rpm | ||
| Torsional Stiffness | 43350.00 in·lb/rad | ||
| Rated HP at 100 rpm | 18.00 hp | ||
| Rated HP at 1,200 rpm | 216.00 hp | ||
| Rated HP at 1,800 rpm | 324.00 hp | ||
| Notes | |||
| Notes |
| ||
|---|---|---|---|
