Product Details
Product Details
- TIMKEN QMFY08J108S
- Brand: TIMKEN
- Type series: Flanged bearing with round flange and eccentric locking
- Model: QMFY08J108S
- Weight: 4.5Kg
Product parameters
| Specifications | |||
| Engineering Group | Mounted Bearing | ||
|---|---|---|---|
| Bearing Number | 22208 | ||
| Shaft Size | 1-1/2 in | ||
| Shaft Size Type | Imperial | ||
| Full Timken Part Number | QMFY08J108ST | ||
| Locking Style | Eccentric | ||
| Weight | 4.5 Kg Series 10 lb | ||
| Housing Construction | Round Flange | ||
| UPC Code | 0883450960335 | ||

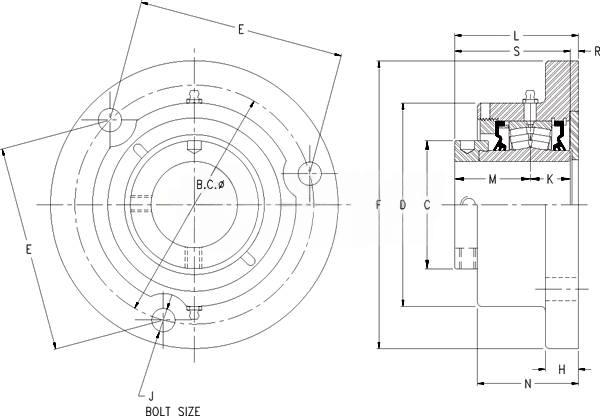

| Dimensions | |||
| Dimension BC | 127.0 mm 5.00 in | ||
|---|---|---|---|
| Dimension C (type) | 60.50 mm 2.380 in | ||
| Dimension D (type) | 108 mm 4.25 in | ||
| Dimension E | 89.9 mm 3.54 in | ||
| Dimension F (type) | 158.Series 8 mm 6.25 in | ||
| Dimension H | 19.1 mm 0.75 in | ||
| Dimension J (Bolt Size) | Series 12 mm 0.5 in | ||
| Dimension K (type) | 25.4 mm 1 in | ||
| Dimension L Exp | 75.2 mm 2.96 in | ||
| Dimension L Fix | 73.2 mm 2.88 in | ||
| Dimension Series M | 44.5 mm 1.75 in | ||
| Dimension N (type) | 57.40 mm 2.260 in | ||
| Dimension R | 3.3 mm 0.13 in | ||
| Dimension S | 69.9 mm 2.75 in | ||
| Radial and Thrust Factors | |||
| C0 - Static Load | 22400 lb 99.7 kN | ||
|---|---|---|---|
| C (type) - Dynamic Load (Basic) | 23400 lb 104 kN | ||
| e - Geometry Factor | 0.27 | ||
| Y1 - Geometry Factor | 2.47 | ||
| Y2 - Geometry Factor | 3.67 | ||
| Engineering Seal Speed | |||
| Oil Lubrication - Series M/N (type) Seal | 2700 rpm | ||
|---|---|---|---|
| Oil Lubrication - T (type) Seal | 4500 rpm | ||
| Oil Lubrication - B (type)/C (type)/O Seal | 1950 rpm | ||
| Grease Lubrication - Series M/N (type) Seal | 2700 rpm | ||
| Grease Lubrication - T (type) Seal | 4000 rpm | ||
| Grease Lubrication - B (type)/C (type)/O Seal | 1950 rpm | ||
| Engineering Bearing Attributes | |||
| Float | 1.270 mm 0.050 in | ||
|---|---|---|---|
| Shaft Tolerance | 0.025 mm 0.0010 in | ||
| Engineering Internal Radial Clearance | |||
| Eng Internal Radial Clearance - Min | 0.0012 | ||
|---|---|---|---|
| Eng Internal Radial Clearance - Max | 0.0018 | ||
| Pre Install Clearance Min | 0.030 mm 0.0012 in | ||
| Pre Install Clearance Max | 0.045 mm 0.0018 in | ||
