Product Details
Product Details
- INA RWU100-E-L
- Brand:INA
- Type series:RWU..-E-L
- Model:RWU100-E-L
- B : 250mm L : 372.2mm Weight:36.4Kg
Product parameters
| Description | |||
| K1 | M24 | DIN ISO 4762-12.9 Maximum [MA](Nm): M6 = 17 M8 = 41 M12 = 140 M14 = 220 M16 = 340 M24 = 1100 | |
|---|---|---|---|
| K3 | M16 | DIN ISO 4762-12.9 Maximum [MA](Nm): M5 = 10 M6 = 17 M8 = 41 M10 = 83 M12 = 140 M14 = 220 M16 = 340 | |
| K6 | M16 | DIN ISO 7984-8.8 Maximum [MA](Nm): M6 = 10 M8 = 24 M10 = 48 M12 = 83 M14 = 130 M16 = 220 | |
| 1) | LocatingSurface | ||
| 2) | |||
| 5) | |||
| G2 | M20 | DIN ISO 4762-12.9 Maximum [MA](Nm): M6 = 10 M8 = 24 M10 = 41 M12 = 83 M14 = 140 M16 = 220 M20 = 470 | |
| GS | M4x4 | DIN EN ISO 4027 | |

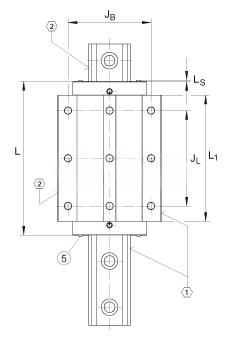

| Dimensions | |||
| L1 | 306.5 | mm | - |
|---|---|---|---|
| LS | 3.3 | mm | - |
| lmax | 2730 | mm | Guide railMaximumLengthGuide rail,. same,Guide railMaximumLength6. |
| N2 | 6 | mm | MaximumDiameter. |
| N3 | M6 | Maximum 6 mm | |
| N4 | 5.6 | mm | Diameter |
| O | 10x1.5 | mm | DIN 3771 |
| T5 | 29 | mm | - |
| T6 | 26.6 | mm | - |
| W10 | 10 | mm | SurfaceWidth |
| W7 | 7 | mm | SurfaceWidth |
| W8 | 8 | mm | SurfaceWidth |
| H | 120 | mm | - |
| B | 250 | mm | - |
| L | 372.2 | mm | ,MinimumLength. |
| A1 | 75 | mm | - |
| A3 | 10.6 | mm | - |
| A4 | 10.6 | mm | - |
| aL max | 83 | mm | a L a R Guide railLength l max |
| aL min | 30 | mm | a L a R Guide railLength l max |
| aR max | 83 | mm | a L a R Guide railLength l max |
| aR min | 30 | mm | a L a R Guide railLength l max |
| b | 100 | mm | Tolerance: -0,005 / -0,035 |
| H1 | 15 | mm | - |
| H4 | 51.3 | mm | - |
| H5 | 25 | mm | - |
| h | 80 | mm | - |
| h1 | 48 | mm | Tolerance: +/-0,5 |
| JB | 200 | mm | - |
| JL | 230 | mm | - |
| JL5 | 47.15 | mm | . |
| JL6 | 65.1 | mm | - |
| jL | 105 | mm | - |
| Weight | |||
| mW | 3Series 6400 | g | Quality |
|---|---|---|---|
| mS | 45.3 | kg/m | Guide railQuality |
| Basic rated load | |||
| C | 630000 | N | Basic ratingDynamic load |
|---|---|---|---|
| C0 | 1490000 | N | Basic ratingStatic load |
| Rated | |||
| M0x | 33780 | Nm | X ShaftRated |
|---|---|---|---|
| M0y | 80250 | Nm | Y ShaftRated |
| M0z | 72280 | Nm | Z ShaftRated |
