Product Details
Product Details

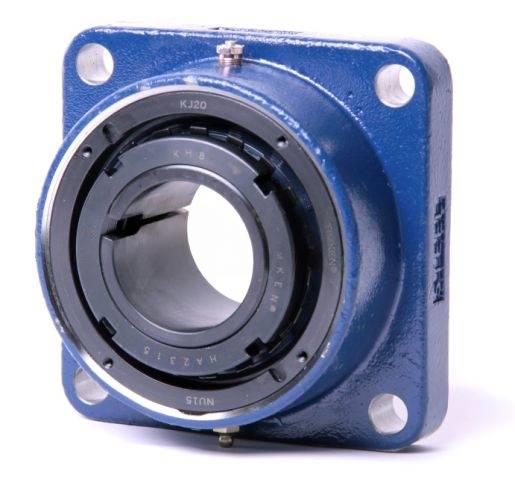

- TIMKEN DVF13K204S
- Brand: TIMKEN
- Type series: Four-bolt flanged bearing with tapered adapter sleeve locking
- Model: DVF13K204S
- Weight: 6.8Kg
Product parameters
| Specifications | |||
| Engineering Group | Mounted Bearing | ||
|---|---|---|---|
| Bearing Number | 22213 | ||
| Shaft Size | 2-1/4 in | ||
| Shaft Size Type | Imperial | ||
| Full Timken Part Number | DVF13K204ST | ||
| Locking Style | Tapered Adapter | ||
| Weight | 6.Series 8 Kg 15.0 lb | ||
| Housing Construction | Four-Bolt Square Flange | ||
| UPC Code | 0883450274180 | ||

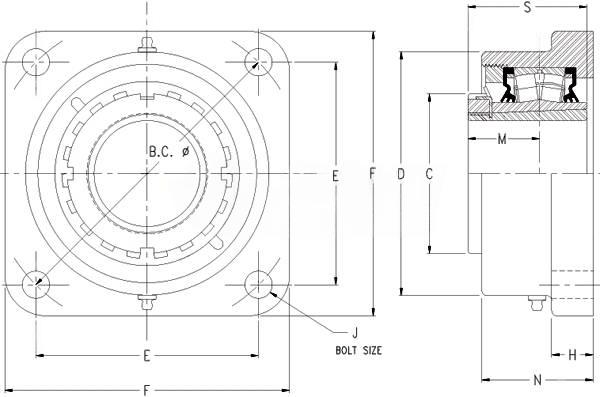

| Dimensions | |||
| Dimension BC | 175.0 mm 6.89 in | ||
|---|---|---|---|
| Dimension C (type) | 85.1 mm 3.35 in | ||
| Dimension D (type) | 137.90 mm 5.430 in | ||
| Dimension E | 124.0 mm 4.88 in | ||
| Dimension F (type) | 157.2 mm 6.19 in | ||
| Dimension H | 25.4 mm 1.00 in | ||
| Dimension J (Bolt Size) | 16 mm 0.625 in | ||
| Dimension L | 70.Series 8 mm 2.79 in | ||
| Dimension Series M | 39.6 mm 1.56 in | ||
| Dimension N (type) | 66.80 mm 2.630 in | ||
| Dimension S | 65 mm 2.56 in | ||
| Radial and Thrust Factors | |||
| C0 - Static Load | 48600 lb 216 kN | ||
|---|---|---|---|
| C (type) - Dynamic Load (Basic) | 46400 lb 206 kN | ||
| e - Geometry Factor | 0.27 | ||
| Y1 - Geometry Factor | 2.49 | ||
| Y2 - Geometry Factor | 3.71 | ||
| Engineering Seal Speed | |||
| Oil Lubrication - Series M/N (type) Seal | 1800 rpm | ||
|---|---|---|---|
| Oil Lubrication - T (type) Seal | 3200 rpm | ||
| Oil Lubrication - B (type)/C (type)/O Seal | 1500 rpm | ||
| Grease Lubrication - Series M/N (type) Seal | 1800 rpm | ||
| Grease Lubrication - T (type) Seal | 2800 rpm | ||
| Grease Lubrication - B (type)/C (type)/O Seal | 1500 rpm | ||
| Engineering Bearing Attributes | |||
| Float | 1.270 mm 0.050 in | ||
|---|---|---|---|
| Shaft Tolerance | 0.076 mm 0.0030 in | ||
| Engineering Internal Radial Clearance | |||
| Pre Install Clearance Min | 0.075 mm 0.0030 in | ||
|---|---|---|---|
| Pre Install Clearance Max | 0.094 mm 0.0037 in | ||
| Int Radial Clearance Reduction Min | 0.030 mm 0.0012 in | ||
| Int Radial Clearance Reduction Max | 0.038 mm 0.0015 in | ||
| Adapter Sleeve Axial Movement Min | 0.5 mm 0.018 in | ||
| Adapter Sleeve Axial Movement Max | 0.6 mm 0.022 in | ||
| Post Install Int Radial Clearance Min | 0.038 mm 0.0015 in | ||
