Product Details
Product Details
- TIMKEN 68514476955
- Brand: TIMKEN

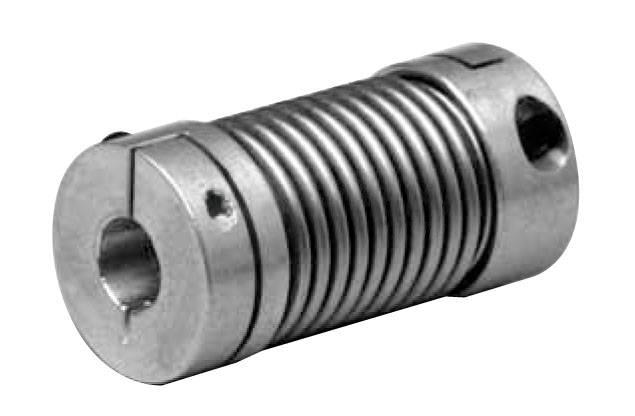

- Type series: BWC Series - Bellows Clamp Style Couplings - Inch Bores
- Model: 68514476955
Product parameters
| Specifications | |||
| Description | BWC41 CPLG 3/4X3/4 | ||
|---|---|---|---|
| Coupling Size | BWC41 | ||
| Type | Standard Bellows Coupling | ||
| Bellows Material | Stainless Steel | ||
| Hub Material | Aluminum | ||
| Style | Clamp | ||
| Application | Motion Control | ||
| Weight | 0.16 oz | ||
| Weight (Complete Coupling w/ Min. Bores) | 2.60 oz | ||

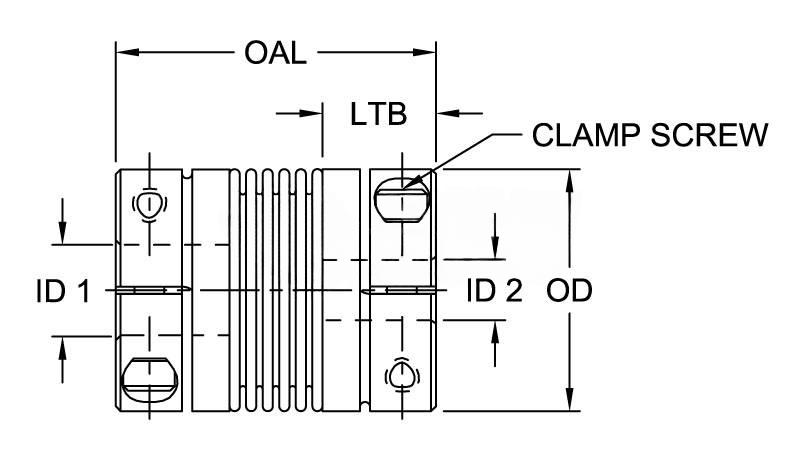

| Dimensional Data | |||
| Bore A (type) | 0.750 in | ||
|---|---|---|---|
| Bore B (type) | 0.750 in | ||
| Overall Length | 41.000 mm 1.614 in | ||
| Keyway Size | No Keyway | ||
| Outside Diameter | Series 32.00 mm 1.260 in | ||
| Min. Bore (Dimensions ID1/ID2) | 6 mm 0.236 in | ||
| Max. Bore (Dimensions ID1/ID2) | 16 mm 0.63 in | ||
| Length thru Bore | 14.00 mm 0.551 in | ||
| Clamp Screw Size | M4 | ||
| Cubic inches | 2.56239 in3 | ||
| Performance Data | |||
| Max. Operating Temperature | 212.00 oF | ||
|---|---|---|---|
| Max. Speed | 15000 rpm | ||
| Nominal Torque | 39.83 in·lb | ||
| Angular Misalignment | 1.20 o | ||
| Axial Misalignment | 0.0120 in | ||
| Parallel Misalignment | 0.004 in | ||
| Moment of Inertia | 0.3350 lb·in2 | ||
| Torsional Stiffness | 57083.00 in·lb/rad | ||
| Features | |||
| Features |
| ||
|---|---|---|---|
| Notes | |||
| Notes |
| ||
|---|---|---|---|
