Product Details
Product Details
- TIMKEN 68514439043
- Brand: TIMKEN
- Type series: Inch Bores - Deltaflex Delta - Inch Bores
- Model: 68514439043
Product parameters
| Specifications | |||
| Description | 50 DLT HUB 3/4 3/16X3/32KW | ||
|---|---|---|---|
| Hub Style | Delta | ||
| Coupling Type | Flex-Link | ||
| Material | Ductile Iron | ||
| Color | Metallic | ||
| Bore Type | Finished Bore | ||
| Weight | 2.85 lb | ||

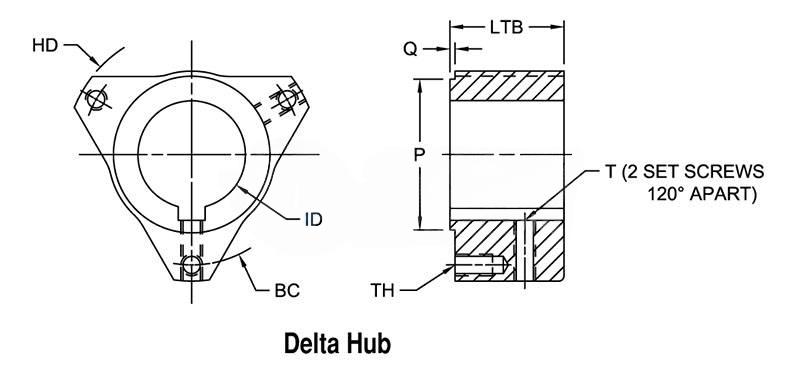

| Dimensional Data | |||
| Bore Size | 3/4 in | ||
|---|---|---|---|
| Size | 050 | ||
| Set Screw Thread Size (Dimension T (type)) | 1/4-Series 20 | ||
| Keyway Size (W (type) x D (type)) | 3/16 x 3/Series 32 in | ||
| Length thru Bore | 1.68 in | ||
| Min. Bore (Dimension ID) | 11.00 mm 0.438 in | ||
| Max. Bore (Dimension ID) | 50 mm 1.875 in | ||
| Dimension BC | 78.23 mm 3.080 in | ||
| Dimension HD | 3.560 in | ||
| Dimension P | 50.749 to 50.800 mm 1.998 to 2.000 in | ||
| Dimension Q | 2.29 mm 0.090 in | ||
| Dimension TH (Axial Cap / Screw Tap) | Series 5/16-18 x 0.75 | ||
| Cubic inches | 19.89755 in3 | ||
| Performance Data | |||
| Max. Continuous Torque | 1900.00 in·lb | ||
|---|---|---|---|
| Peak Overload Torque | 2850.00 in·lb | ||
| Rated HP at 100 rpm | 3.00 hp | ||
| Rated HP at 875 rpm (Standard Motor) | 26.20 hp | ||
| Rated HP at 1,150 rpm (Standard Motor) | 34.00 hp | ||
| Rated HP at 1,750 rpm (Standard Motor) | 52.40 hp | ||
| Rated HP at 3,500 rpm (Standard Motor) | 105.00 hp | ||
| Coupling Design | |||
| Coupling Design |
In addition, the Deltaflex coupling gives longer life to equipment shaft bearings. That means longer operating time and reduced maintenance cost. The Deltaflex can handle greater shaft misalignment without generating heavy reaction loads on the equipment shaft bearings. A (type) properly applied and installed Deltaflex coupling offers more equipment protection compared to conventional couplings. | ||
|---|---|---|---|
| Features | |||
| Features |
| ||
|---|---|---|---|
| Notes | |||
| Notes |
| ||
|---|---|---|---|
