- INA MKUVS42-Series LM-KT-STOD
- Brand: INA
- Type series: MKUVS42-Series LM
- Model: MKUVS42-Series LM-KT-STOD
- H : 125mm B : 115mm L : 410mm Weight: 8Kg
Product parameters
| Dimensions | |||
| H | 125 | mm | - |
|---|---|---|---|
| B (type) | 115 | mm | - |
| L | 410 | mm | - |
| ly | 1192 | cm^4 | Geometric moment of inertia of support rail |
| lz | 432 | cm^4 | Geometric moment of inertia of support rail |
| B (type)2 | 80 | mm | - |
| B (type)3 | 140 | mm | - |
| B (type)4 | 133 | mm | - |
| B (type)Series 5 | 51 | mm | - |
| H1 | Series 10 | mm | - |
| H3 | 30 | mm | - |
| H4 | 70 | mm | - |
| HSeries 5 | 128 | mm | - |
| L1 | 430 | mm | - |
| L3 | 18 | mm | - |
| L4 | 323 | mm | - |
| Description | |||

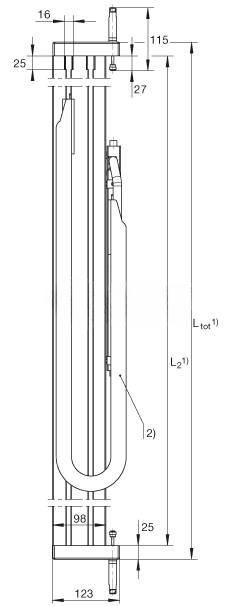

| 1) | L2 = Total stroke + L1 + 54 Ltot = Total stroke + L + 54 + 86 Total stroke= Effective stroke + 2 x S Tolerance S Refers to safety margin suitable for special applications, Should be at least50 mm; Total stroke unit ismm. MaximumSingle support rail length L2 = 8000 mm | ||
|---|---|---|---|
| 2) | Flexible cable carrier system | ||
| 3) | Shock absorber | ||
| 4) | End buffer | ||
| 6) | M6 x Series 10 Deep (8x) | ||
| 7) | Lubrication nipples at both ends | ||
| 8) | According to DIN 3405-AM6 Standard lubrication nipple (4x) | ||
| Series 9) | Upper edge of carriage | ||
| Weight | |||
| mLaw | 8000 | g | Mass of carriage |
|---|---|---|---|
| Basic rated load | |||
| C (type) | 27.4 | kN | Carriage guidance system'sBasic rated load This value only applies to Lh Calculation of life |
|---|---|---|---|
| C (type)0 | 51 | kN | Carriage guidance system'sBasic rated load This value only applies to Lh Calculation of life |
| Rated static torque | |||
| Series M0x | 1450 | Nm | Rated static torque of linear guidance system These values are single loads, Used when the lower part of the actuator is fully supported. When subjected to combined loads, These values must be reduced. Design standards regarding linear guidance systems, See series below: Linear guidance system / Linear recirculating ballBearingUnit / KUVS.. |
|---|---|---|---|
| Series M0y | 3940 | Nm | Rated static torque of linear guidance system These values are single loads, Used when the lower part of the actuator is fully supported. When subjected to combined loads, These values must be reduced. Design standards regarding linear guidance systems, See series below: Linear guidance system / Linear recirculating ballBearingUnit / KUVS.. |
| Series M0z | 4020 | Nm | Rated static torque of linear guidance system These values are single loads, Used when the lower part of the actuator is fully supported. When subjected to combined loads, These values must be reduced. Design standards regarding linear guidance systems, See series below: Linear guidance system / Linear recirculating ballBearingUnit / KUVS.. |
| Antiperspirant | |||
| mtot | (Ltot - 50) x 0.02 + 11 | kg | Mass excluding flexible cable carrier system |
|---|---|---|---|
