TIMKEN 68514461458: Brand: TIMKEN; Type series: CJ Series Spiders; Model: 68514461458

加入对比

Product parameters

TIMKEN 68514461458Bearing Detailed parameters

Specifications
Dimensional Data
Performance Data
The Curved Jaw Design
Elastomer Characteristic
Application Types Requiring
Notes

Specifications
Description	CJ 110 SPIDER 92A YELLOW
Type	Jaw
Spider Type	92 Shore A (type)
Material	Polyurethane
Style	Open Center
Color	Yellow
Coupling Type	Elastomeric Insert
Stock Sizes	14 - 180
Weight	1.65 lb

Dimensional Data

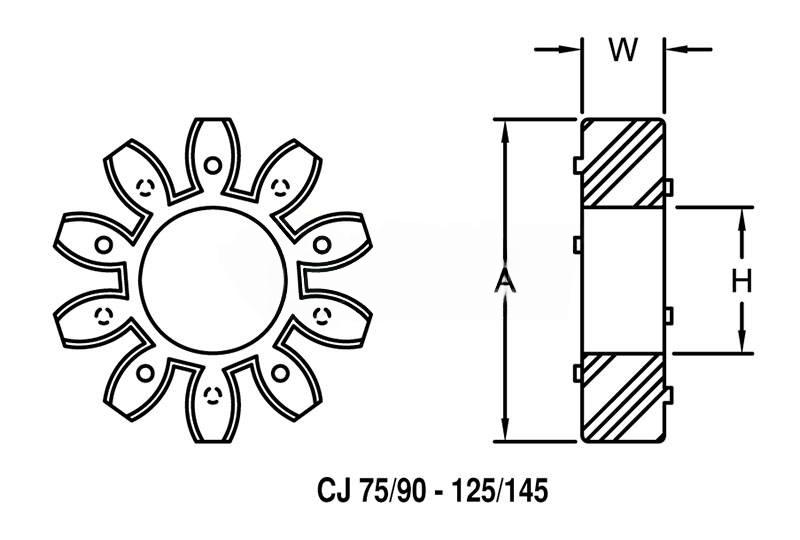

Spider Size	110
Set Screw Size	Series 5/Series 8-11
Set Screw Style Coupling Location Size (Dimension SL)	35.05 mm 1.380 in
Outside Diameter	255.00 mm Series 10.040 in
Spider Outside Diameter (Dimension A (type))	255.00 mm Series 10.040 in
Spider Inside Diameter (Dimension H)	127.00 mm 5.000 in
Spider Thickness (Dimension W (type))	42.00 mm 1.650 in
Dimension Series G	55.12 mm 2.170 in
Dimension S	103.12 mm 4.060 in
Distance between Spider and Hub Face (Dimension CL)	6.60 mm 0.260 in
Cubic inches	166.32264 in3

Performance Data
Normal Temperature Range	-40 to 212 oF
Max. Temperature Range	-50 to 248 oF
Nominal Torque	4799.00 N (type)·m 42480.00 in·lb
Max. Torque	9599.00 N (type)·m 84960.00 in·lb
Max. Speed	2240.00 rpm
Angular Displacement	0.220 in
Max. Angular Displacement (∆ Ka), n=1500 [1/min]	1.30 o
Max. Axial Displacement (∆ Ka)	0.1650 in
Max. Radial Displacement (∆ Kr)	0.0210 in
Axial Misalignment	0.039 to 252 in
Angular Misalignment	0.90 to 1.30 o
Parallel Misalignment	0.008 to 0.027 in
Wind-Up Angle at Nominal Torque	3.20 o
Wind-Up Angle at Max. Torque	5.00 o
Rated HP at 1,200 rpm	800.00 hp
Rated HP at 1,800 rpm	1210.00 hp

The Curved Jaw Design
The Curved Jaw Design	Three piece design that is easy to assemble The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider) Hubs are offered in sintered iron, steel, aluminum, cast iron and nodular iron materials Three different urethane elastomers available No metal to metal contact and no lubrication required Fail safe design due to the jaw in compression design (continues to function after the elastomer fails) The CJ series covers a torque range of 67 to 247,800 in-lbs

Elastomer Characteristic
Elastomer Characteristic	Four types of spiders are available for the CJ Series of couplings Urethane spiders provide high abrasion resistance and elasticity, along with good damping characteristics The spiders are offered in a variety of shore hard nesses, each providing a different level of torque capacity, damping, and chemical resistance The 92A shore insert (yellow in color) is the standard, offering excellent torque carrying capacity The 80A shore insert (blue) offers the best damping characteristics The 95/98A shore spider (red) offers higher torque than the standard 92 shore, but retains greater damping capacity compared to the 64D shore insert (green) The 64D shore insert is offered for high humidity environments, higher temperatures, and offers the highest torque capacity The standard curved jaw spider design has a hole in the center to accommodate small between shaft end measurements The 80A, 92A, and 95/98A shore spiders have a temperature capacity of 212° F (type) The 64D shore spider has a temperature capacity of Series 230° F (type) The curved jaw spider’s urethane material also resists oil, dirt, sand, grease, moisture, many solvents, as well as atmospheric effects of ozone

Application Types Requiring
Application Types Requiring	General & Hydraulics Applications

Notes
Notes	Maximum bore may be achieved through the use of a shallow keyway. Maximum bore refers to maximum straight bore with keyway allowed in hub. Outside Diameter is equal to Dimension HD for B (type) style aluminum sizes: Series 19, 24, and 28. S = Solid hub with no bore Spider Outside Diameter (Dimension A (type)) is equal to Outside Diameter The values regarding displacement are provided assuming normal operating conditions (i.e. temperature, torque with nominal rating of the coupling, speed/RPM rating of the coupling, and misalignment). Careful installation (i.e. alignment) and periodic inspection should be provided to provide the optimum life of the coupling. Special consideration should be given as to the position of the shafts and the amount of axial movement the coupling will be exposed to. The more accurate the alignment of the coupling, will result in greater life of the elastomer. A (type) coupling guard and rotating equipment safety procedures should always be followed. Please consult the Lovejoy web site at www.lovejoy-inc.com for assembly instructions of the curved jaw coupling.
