Product parameters
| Specifications | |||

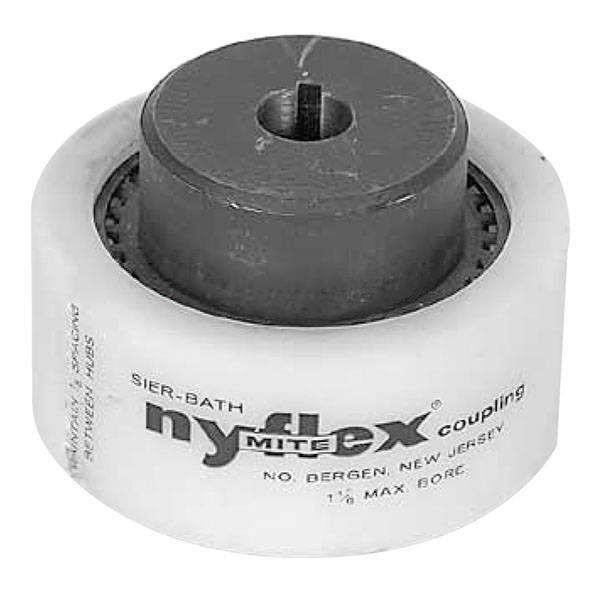

| Description | MITE HUB 1-1/8 1/4X1/8KW | ||
|---|---|---|---|
| Type | Gear Coupling Hubs | ||
| Hub Material | Sintered Iron | ||
| Style | Bored | ||
| Color | Metallic | ||
| Coupling Type | Gear | ||
| Weight | 0.70 lb | ||
| Complete Coupling Weight | 1.00 lb | ||

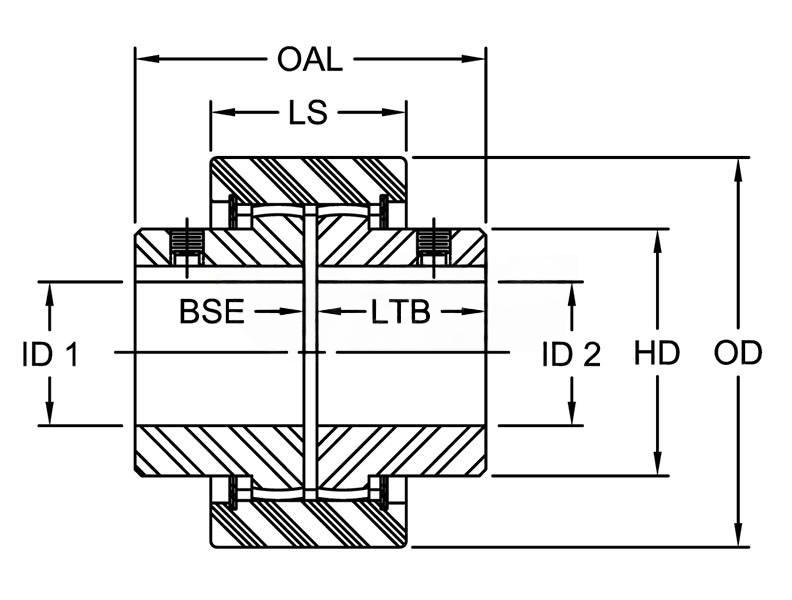

| Dimensional Data | |||
| Bore Size | 1 1/8 in | ||
|---|---|---|---|
| Size | MITE | ||
| Set Screw Style Coupling Size (Dimension T (type)) | 1/4-Series 20 | ||
| Keyway Size (W (type) x D (type)) | 1/4 x 1/8 in | ||
| Overall Length | 60.45 mm 2.380 in | ||
| Length thru Bore | 28.70 mm 1.130 in | ||
| Outside Diameter | 73.15 mm 2.880 in | ||
| Max. Bore (Dimensions ID1/ID2) | 28.58 mm 1.125 in | ||
| Dimension HD | 44.45 mm 1.75 in | ||
| Dimension Series LS | Series 33.27 mm 1.310 in | ||
| Distance between Shaft Ends (Dimension BSE) | 3.30 mm 0.13 in | ||
| Cubic inches | 3.46063 in3 | ||
| Performance Data | |||
| Max. Angular Misalignment | 3.00 o | ||
|---|---|---|---|
| Features | |||
| Features |
| ||
|---|---|---|---|
| Notes | |||
| Notes |
| ||
|---|---|---|---|
