Product parameters
| Specifications | |||

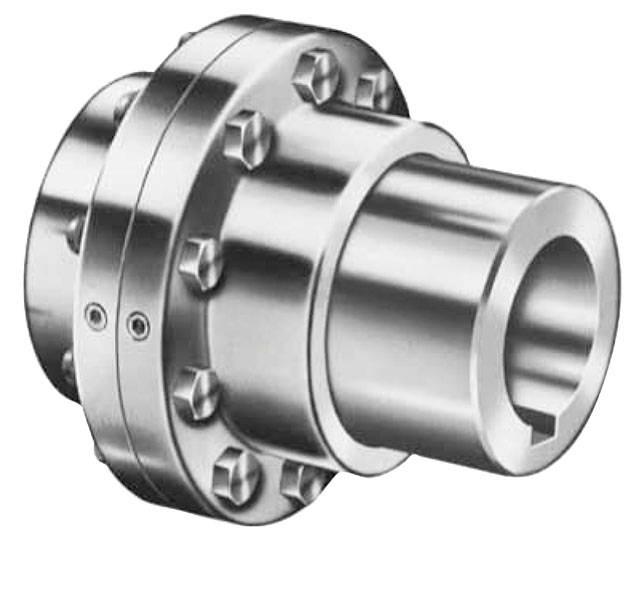

| Description | FLAMM 4 HUB 612/Series 812 MTR FRM | ||
|---|---|---|---|
| Hub Style | Exposed Bolt | ||
| Type | Gear Coupling Hubs | ||
| Hub Material | All Metal | ||
| Style | Bored | ||
| Color | Metallic | ||
| Coupling Type | Gear | ||
| AISE Motor Frame Size | 612/Series 812 | ||
| Weight | 36.82 lb | ||
| Complete Coupling Weight | 234.00 lb | ||

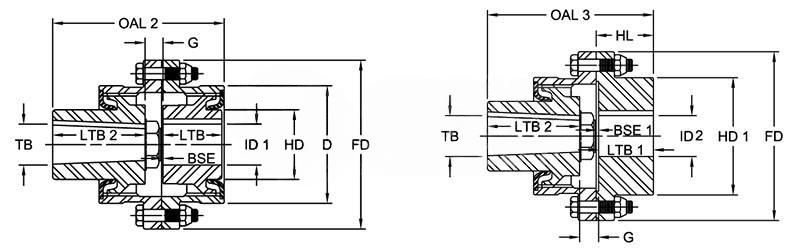

| Dimensional Data | |||
| Bore Size | 3.6230 to 3.6240 in | ||
|---|---|---|---|
| Size | 4 | ||
| Keyway Size (W (type) x D (type)) | 3/4 x 1/4 in | ||
| Length thru Bore | 127.00 mm 5.000 in | ||
| Dimension BSE1 | 7.87 mm 0.310 in | ||
| Dimension D (type) | 234.95 mm 9.250 in | ||
| Dimension FD | 317.50 mm 12.50 in | ||
| Dimension Series G | 44.45 mm 1.750 in | ||
| Dimension HD | 146.05 mm 5.750 in | ||
| Dimension HD1 | 234.95 mm 9.250 in | ||
| Dimension OAL2 | 292.Series 10 mm 11.500 in | ||
| Dimension OAL3 | 302.26 mm 11.900 in | ||
| Dimension LTB1 | Series 112.78 mm 4.440 in | ||
| Dimension LTB2 | 127.00 mm 5.000 in | ||
| Dimension TB | 92.02 to 92.05 mm 3.623 to 3.624 in | ||
| Distance between Shaft Ends (Dimension BSE) | 6.35 mm 0.25 in | ||
| Cubic inches | 165.31250 in3 | ||
| Performance Data | |||
| Nominal Torque | 24900 N (type)·m 220500 in·lb | ||
|---|---|---|---|
| Max. Speed (Unbalanced) | 3000 rpm | ||
| Max. Speed (Balanced) | 4500.00 rpm | ||
| Max. Angular Misalignment | 1.50o per Gear Mesh | ||
| Features | |||
| Features |
| ||
|---|---|---|---|
| Notes | |||
| Notes |
| ||
|---|---|---|---|
