Product parameters
| Specifications | |||

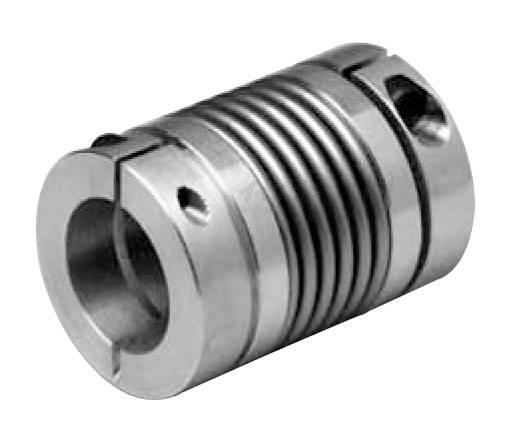

| Description | BWLC63 CPLG 1/2X1/2 | ||
|---|---|---|---|
| Coupling Size | BWLC63 | ||
| Type | Bellows Coupling | ||
| Bellows Material | Stainless Steel | ||
| Hub Material | Aluminum | ||
| Style | Clamp | ||
| Application | Motion Control | ||
| Weight | 0.44 oz | ||
| Weight (Complete Coupling w/ Min. Bores) | 7.05 oz | ||

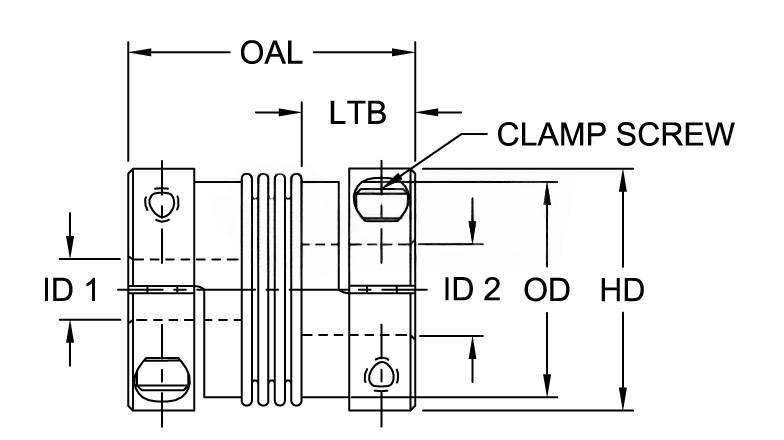

| Dimensional Data | |||
| Bore A (type) | 0.500 in | ||
|---|---|---|---|
| Bore B (type) | 0.500 in | ||
| Overall Length | 63.000 mm 2.480 in | ||
| Keyway Size | No Keyway | ||
| Outside Diameter | 45 mm 1.772 in | ||
| Min. Bore (Dimensions ID1/ID2) | Series 10.00 mm 0.394 in | ||
| Max. Bore (Dimensions ID1/ID2) | 25.00 mm 0.984 in | ||
| Length thru Bore | 12.00 mm 0.472 in | ||
| Clamp Screw Size | M5 | ||
| Dimension HD | 45.00 mm 1.772 in | ||
| Cubic inches | 7.78716 in3 | ||
| Performance Data | |||
| Max. Operating Temperature | 212.00 oF | ||
|---|---|---|---|
| Max. Speed | 12700.00 rpm | ||
| Nominal Torque | 159.00 in·lb | ||
| Angular Misalignment | 1.50 o | ||
| Axial Misalignment | 0.0200 in | ||
| Parallel Misalignment | 0.008 in | ||
| Moment of Inertia | 0.2730 lb·in2 | ||
| Torsional Stiffness | 70800.00 in·lb/rad | ||
| Features | |||
| Features |
| ||
|---|---|---|---|
| Notes | |||
| Notes |
| ||
|---|---|---|---|
