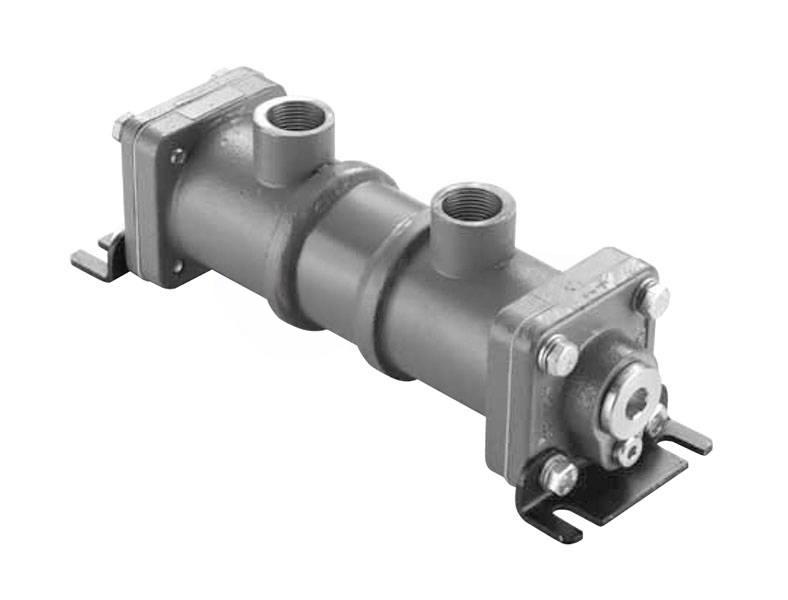

- TIMKEN 84527103117
- Brand: TIMKEN
- Type series: 1-Pass Model Oil Coolers, BNZ Series
- Model: 84527103117
Product parameters
| Specifications | |||
| Description | BNZ-60-615-1-B (type) OIL COOLER | ||
|---|---|---|---|
| Series | BNZ Series 60-615 | ||
| Model | 1-Pass | ||
| Type | Temperature Control Unit | ||
| Max. Operating Pressure - Shell Side | 580.00 psi 40.00 bar | ||
| Style | Shell & Tube Technology | ||
| Application | To cool hydraulic fluid utilizing shell and tube technology | ||
| Oil Port | BSPP | ||
| Weight | 15.85 lb | ||
| Surface Area | 1.90 m² 20.50 ft2 | ||
| UPC Number | 3117 | ||
| Tube Material | Copper | ||
| Shell, Guide Plate, Brackets & Bypass Valve Material | Steel | ||
| End Cover Material | Cast Iron GG25 | ||
| Fin Material | Aluminum | ||
| Tube Sheet Material | Steel | ||
| Gasket Material | Flat Gaskets C4400 | ||
| End Cap Material | Cast Iron (Stainless Steel Optional) | ||
| Port Housing Material | Cast Iron | ||
| Mounting Bracket Material | Steel (May Be Rotated in 90 Degree Increments) | ||
| Shell Tube Material | Welded Steel | ||
| Gasket Size | C440 (Compatible with Fluids) | ||
| Drain Plug Material | Steel | ||

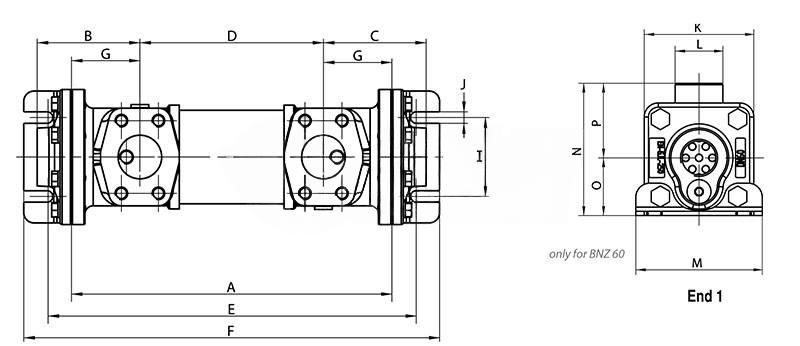

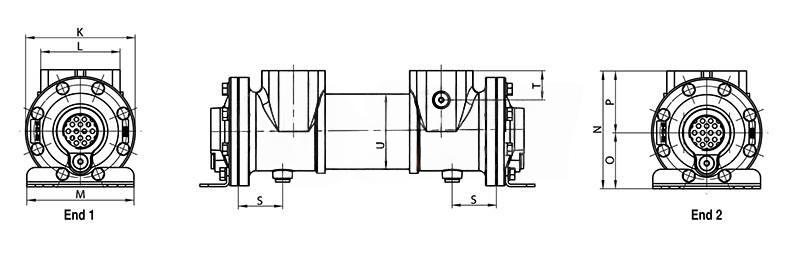

| Dimensional Data | |||
| Oil Port Size | Series G 3/4 | ||
|---|---|---|---|
| Drain Plug (S) | Series G 1/Series 8 | ||
| Dimension A (type) | 615.00 mm 24.210 in | ||
| Dimensions B (type) / C (type) | 82.50 mm 3.250 in | ||
| Dimension D (type) | 504.00 mm 19.840 in | ||
| Dimension E | 666.00 mm 26.220 in | ||
| Dimension F (type) | 697.00 mm 28.440 in | ||
| Dimension Series G | 55.50 mm 2.190 in | ||
| Dimension I | 63.50 mm 2.500 in | ||
| Dimension J | 9.00 mm 0.350 in | ||
| Dimension K (type) | 78.00 mm 3.080 in | ||
| Dimension L | 34.00 mm 1.340 in | ||
| Dimension Series M | 90.00 mm 3.540 in | ||
| Dimension N (type) | 98.00 mm 3.860 in | ||
| Dimension O | 45.00 mm 1.770 in | ||
| Dimension P | 53.00 mm 2.090 in | ||
| Dimension U | 65.00 mm 2.560 in | ||
| Cubic inches | 388.61554 in3 | ||
| Performance Data | |||
| Working Pressure | 230.00 psi | ||
|---|---|---|---|
| Temperature | 95.00 oC | ||
| Max. Flow Rate | 75.00 L/min 20.00 gal/min | ||
| BNZ Cooler Stacks | |||
| BNZ Cooler Stacks |
| ||
|---|---|---|---|
| Optional Materials | |||
| Optional Materials |
| ||
|---|---|---|---|
| Port Options | |||
| Port Options |
| ||
|---|---|---|---|
| Features | |||
| Features |
| ||
|---|---|---|---|
| Notes | |||
| Notes |
| ||
|---|---|---|---|
