Product Details
Product Details
- TIMKEN 69790499044
- Brand:TIMKEN
- Type series:DI-6 Type Complete Couplings - Finished Bores
- Model:69790499044
Product parameters
| Specifications | |||
| Description | DI158-6 1.626*KWX2.6265 BSE=7" | ||
|---|---|---|---|
| Hub Style | Standard | ||

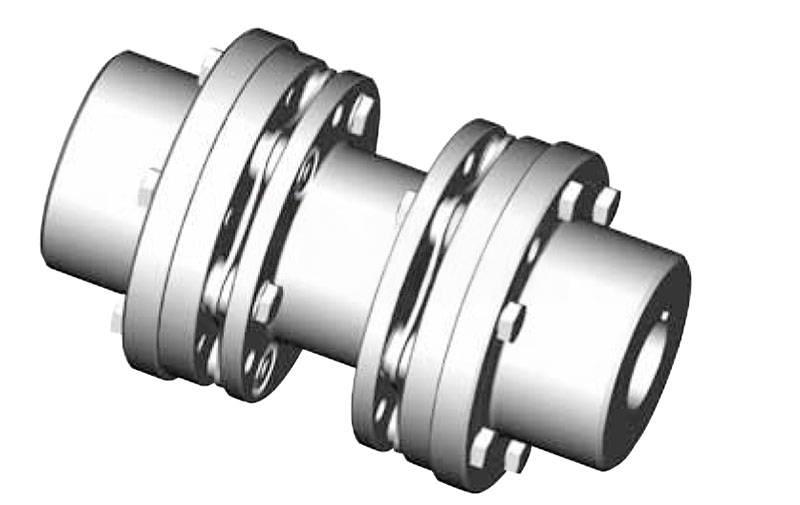

| Type | Disc Coupling | ||
| Material | Steel | ||
| Style | Bored | ||
| Color | Metallic | ||
| Coupling Series | DI-16 | ||
| Coupling Type | Disc | ||

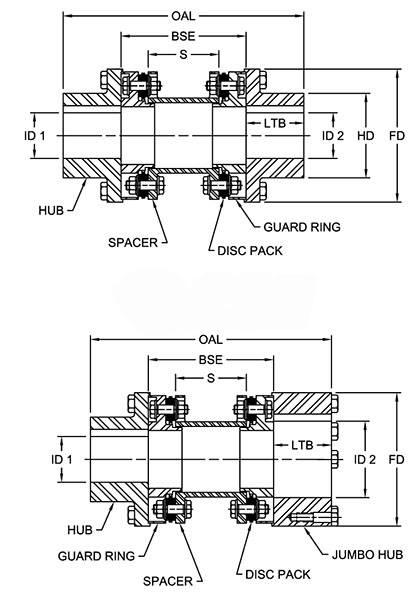

| Dimensional Data | |||
| Size | 158-6 | ||
|---|---|---|---|
| Bore Size | 1.626 & 2.6265 in | ||
| Keyway 1 (W x D) | 1/2 x 1/4 in | ||
| Keyway 2 (W x D) | 5/8 x 5/16 in | ||
| Length thru Bore | 70.1 mm 2.76 in | ||
| Dimension FD | 165 mm 6.5 in | ||
| Overall Length | 318 mm 12.52 in | ||
| Max. Bore (Dimensions ID1/ID2) | 80 mm 3.13 in | ||
| Dimension HD | 112 mm 4.41 in | ||
| Distance between Shaft Ends (Dimension BSE) | 177.8 mm 7 in | ||
| Cubic inches | 465.59500 in3 | ||
| Performance Data | |||
| Temperature | -40 to 450 oF | ||
|---|---|---|---|
| Nominal Torque | 17700 in·lb | ||
| Max. Torque | 35400 in·lb | ||
| Max. Speed (Unbalanced) | 12300 rpm | ||
| Max. Speed (Balanced) | 12300 rpm | ||
| Max. Angular Displacement (∆ Ka), n=1500 [1/min] | 1.5 o | ||
| Axial Misalignment (∆ Ka) | 3.1 mm 0.122 in | ||
| Torsional Stiffness x 106 | 5.8 in·lb/rad | ||
| Rated Power at 100 rpm | 21 kW | ||
| Rated HP at 875 rpm (Standard Motor) | 28.2 hp | ||
| Rated HP at 1,150 rpm (Standard Motor) | 28.2 hp | ||
| Rated HP at 1,750 rpm (Standard Motor) | 28.2 hp | ||
| Rated HP at 3,500 rpm (Standard Motor) | 28.2 hp | ||
| Features | |||
| Features |
| ||
|---|---|---|---|
