- TIMKEN 68514458046
- Brand:TIMKEN
- Type series:MSF Series - Mini Soft Set Screw Style Coupling Hubs - Metric Bores
- Model:68514458046
Product parameters
| Specifications | |||
| Description | MSF16 HUB 8MM N/KW | ||
|---|---|---|---|

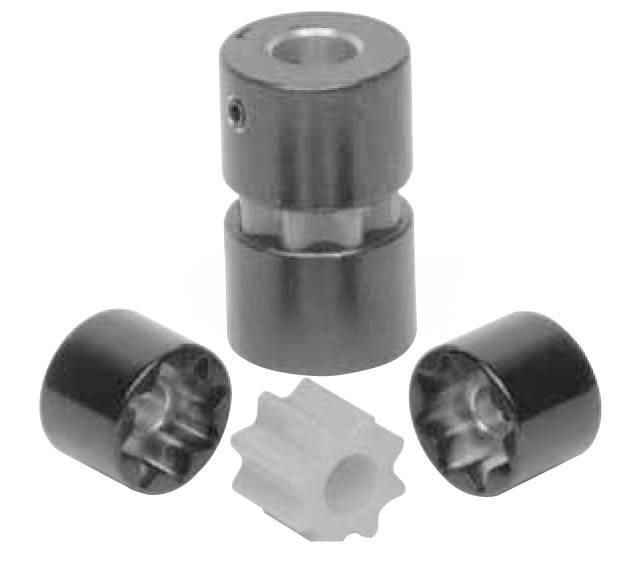

| Type | Mini Soft, Three Piece Design w/ Sleeve Insert | ||
| Coupling Size | MSF16 | ||
| Material | Zinc Alloy | ||
| Style | Set Screw | ||
| Color | Black | ||
| Weight | 0.03 oz | ||
| Weight (Complete Coupling w/ Min. Bores) | 22.00 g 0.80 oz | ||

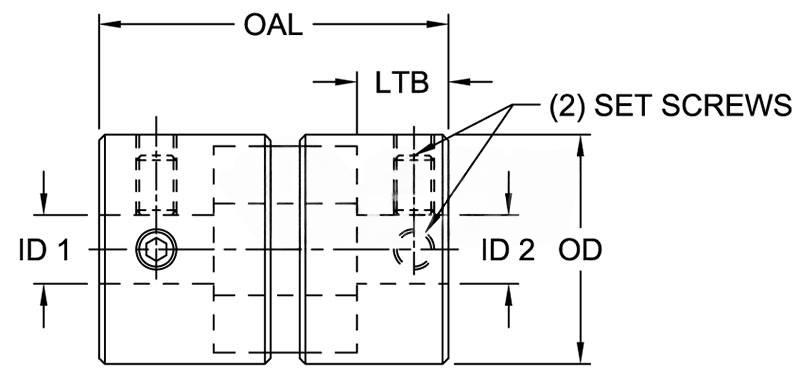

| Dimensional Data | |||
| Bore Size | 8.00 mm | ||
|---|---|---|---|
| Set Screw Size | M3 | ||
| Keyway Size | No Keyway | ||
| Length thru Bore | 8.00 mm 0.315 in | ||
| Overall Coupling Length | 27.00 mm 1.063 in | ||
| Outside Diameter | 16.00 mm 0.63 in | ||
| Min. Bore (Dimensions ID1/ID2) | 3.00 mm 0.118 in | ||
| Max. Bore (Dimensions ID1/ID2) | 8.00 mm 0.315 in | ||
| Cubic inches | 0.42190 in3 | ||
| Performance Data | |||
| Normal Temperature Range | 140.00 oF | ||
|---|---|---|---|
| Nominal Torque | 4.40 in·lb | ||
| Max Speed | 2400.00 rpm | ||
| Angular Misalignment | 2.00 o | ||
| Parallel Misalignment | 0.010 in | ||
| Torsional Stiffness | 27.00 in·lb/rad | ||
| Moment of Inertia | 0.0030 lb·in2 | ||
| Features | |||
| Features |
| ||
|---|---|---|---|
| Notes | |||
| Notes |
| ||
|---|---|---|---|
