Product Details
Product Details

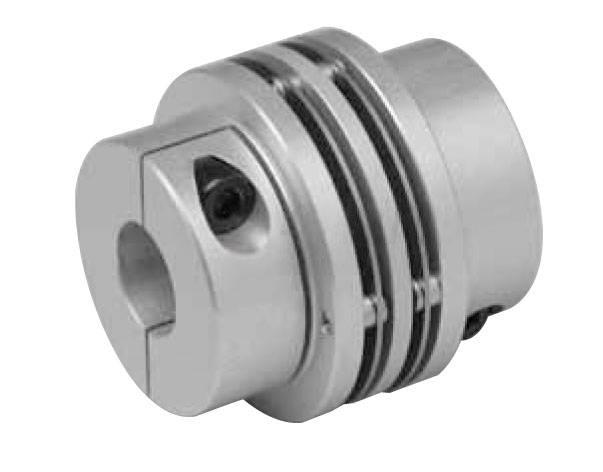

- TIMKEN 68514477181
- Brand:TIMKEN
- Type series:MDS Series - Mini Disc Spacer Clamp Style Couplings - Inch (Imperial) Bores
- Model:68514477181
Product parameters
| Specifications | |||
| Description | MDS63C CPLG 5/8X3/4 | ||
|---|---|---|---|
| Coupling Size | MDS63C | ||
| Bore Type | Finished Bore | ||
| Type | Mini Disc Coupling | ||
| Disc Material | Stainless Steel | ||
| Hub Material | Aluminum | ||
| Style | Clamp Screw | ||
| Application | Motion Control | ||
| Weight | 0.51 oz | ||
| Weight (Complete Coupling w/ Min. Bores) | 8.11 oz | ||

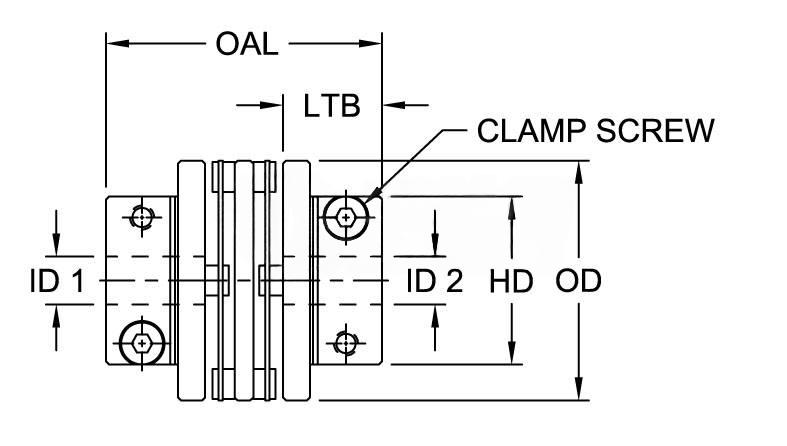

| Dimensional Data | |||
| Bore A | 0.625 in | ||
|---|---|---|---|
| Bore B | 0.750 in | ||
| Overall Length | 58.00 mm 2.283 in | ||
| Keyway Size | No Keyway | ||
| Outside Diameter | 63.00 mm 2.480 in | ||
| Min. Bore (Dimensions ID1/ID2) | 15.00 mm 0.591 in | ||
| Max. Bore (Dimensions ID1/ID2) | 25.00 mm 0.984 in | ||
| Length thru Bore | 22.30 mm 0.878 in | ||
| Clamp Screw Size | M6 | ||
| Dimension HD | 45.00 mm 1.772 in | ||
| Cubic inches | 14.04136 in3 | ||
| Performance Data | |||
| Max. Operating Temperature | 300.00 oF | ||
|---|---|---|---|
| Nominal Torque | 89.00 in·lb | ||
| Angular Misalignment | 2.00 o | ||
| Axial Misalignment | ± 0.031 in | ||
| Parallel Misalignment | 0.012 in | ||
| Moment of Inertia | 0.3760 lb·in2 | ||
| Torsional Stiffness | 22125.00 in·lb/rad | ||
| Features | |||
| Features |
| ||
|---|---|---|---|
| Notes | |||
| Notes |
| ||
|---|---|---|---|
