Product Details
Product Details
- TIMKEN 84527103371
- Brand: TIMKEN
- Type series: 2-Pass Model Oil Coolers, BNZ Series
- Model: 84527103371
Product parameters
| Specifications | |||
| Description | BNZ-125-361-2-F (type) OIL COOLER | ||
|---|---|---|---|
| Series | BNZ 125-361 | ||
| Model | 2-Pass | ||
| Type | Temperature Control Unit | ||
| Max. Operating Pressure - Shell Side | 580.00 psi 40.00 bar | ||
| Style | Shell & Tube Technology | ||
| Application | To cool hydraulic fluid utilizing shell and tube technology | ||
| Oil Port | SAE Flange | ||
| Weight | 43.45 lb | ||
| Surface Area | 4.40 m² 47.30 ft2 | ||
| UPC Number | 3371 | ||
| Tube Material | Copper | ||
| Shell, Guide Plate, Brackets & Bypass Valve Material | Steel | ||
| End Cover Material | Cast Iron GG25 | ||
| Fin Material | Aluminum | ||
| Tube Sheet Material | Steel | ||
| Gasket Material | Flat Gaskets C4400 | ||
| End Cap Material | Cast Iron (Stainless Steel Optional) | ||
| Port Housing Material | Cast Iron | ||
| Mounting Bracket Material | Steel (May Be Rotated in 90 Degree Increments) | ||
| Shell Tube Material | Welded Steel | ||
| Gasket Size | C440 (Compatible with Fluids) | ||
| Drain Plug Material | Steel | ||

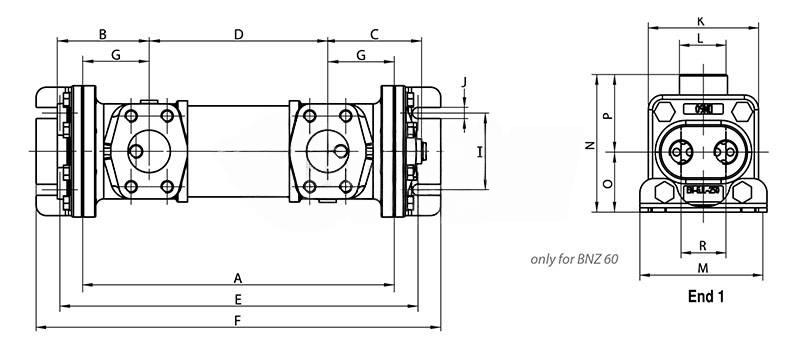

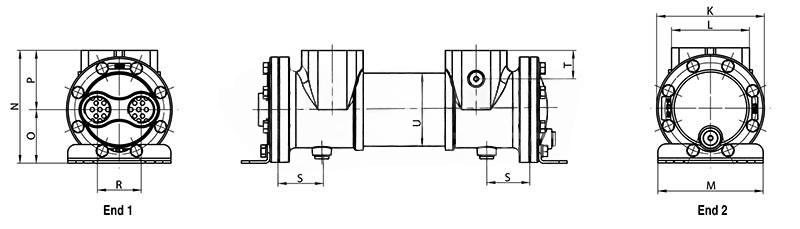

| Dimensional Data | |||
| Oil Port Size | SAE 2 | ||
|---|---|---|---|
| Drain Plug (S) | Series G 1/4 | ||
| Test Port (T (type)) | Series G 1/4 | ||
| Dimension A (type) | 361.00 mm 14.210 in | ||
| Dimension B (type) | 109.50 mm 4.310 in | ||
| Dimension C (type) | 101.50 mm 4.000 in | ||
| Dimension D (type) | 208.00 mm Series 8.190 in | ||
| Dimension E | 426.00 mm 16.770 in | ||
| Dimension F (type) | 487.00 mm 19.170 in | ||
| Dimension Series G | 76.50 mm 3.010 in | ||
| Dimension H | 21.00 mm 0.830 in | ||
| Dimension I | 102.00 mm 4.020 in | ||
| Dimension J | 11.00 mm 0.430 in | ||
| Dimension K (type) | 165.00 mm 6.500 in | ||
| Dimension L | 103.00 mm 4.060 in | ||
| Dimension Series M | 165.00 mm 6.500 in | ||
| Dimension N (type) | 194.00 mm 7.640 in | ||
| Dimension O | 102.00 mm 4.020 in | ||
| Dimension P | 92.00 mm 3.620 in | ||
| Dimension R | 60.00 mm 2.360 in | ||
| Dimension S | 62.00 mm 2.440 in | ||
| Dimension T (type) | 35.00 mm 1.380 in | ||
| Dimension U | 128.00 mm 5.040 in | ||
| Cubic inches | 951.98220 in3 | ||
| Performance Data | |||
| Max. Operating Pressure - Tube Side | 230.00 psi | ||
|---|---|---|---|
| Temperature | 95.00 oC | ||
| Max. Flow Rate | 400.00 L/min 106.00 gal/min | ||
| BNZ Cooler Stacks | |||
| BNZ Cooler Stacks |
| ||
|---|---|---|---|
| Optional Materials | |||
| Optional Materials |
| ||
|---|---|---|---|
| Port Options | |||
| Port Options |
| ||
|---|---|---|---|
| Features | |||
| Features |
| ||
|---|---|---|---|
| Notes | |||
| Notes |
| ||
|---|---|---|---|
