Product Details
Product Details
- NSK SNN524 1
- Brand: NSK
- Type series: Type SNN / shaft diameter Series 20 to 140mm
- Model: SNN524 1
- D1 : 110mm D : 215mm A : 185mm Weight: 26.2Kg
Product parameters
| Threaded plug | |||
| P | R 3/Series 8 | Threaded plug | |
|---|---|---|---|
| Weight | |||
| MASS | 26.2 | Kg | Weight |
|---|---|---|---|
| Applicable parts | |||

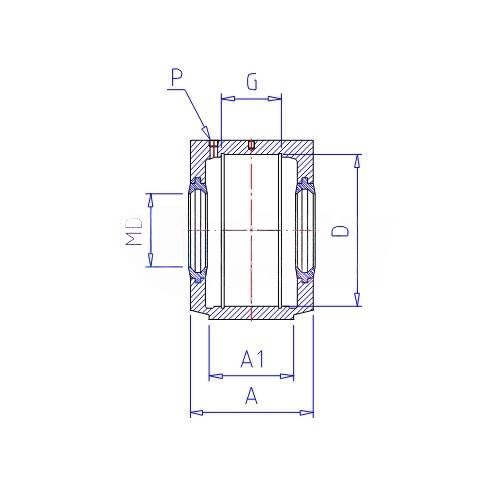

| LRN | SR 215 x 14 | Locating ring specification (Outer diameter×Width) | |
|---|---|---|---|
| Q | 2 | Number of locating rings | |
| SBBN | - | Self-aligning ballBearing | |
| AN | 22224EAKE4 | Spherical rollerBearing | |
| AD | H3124 | Adapter sleeveModel | |
| Model | |||
| Model | SNN524 1 | - | |
|---|---|---|---|
| Shaft diameter | |||
| D1 | 110 | mm | Shaft diameter |
|---|---|---|---|
| BearingHousing | |||
| PLB | SNN524-620 | Model | |
|---|---|---|---|

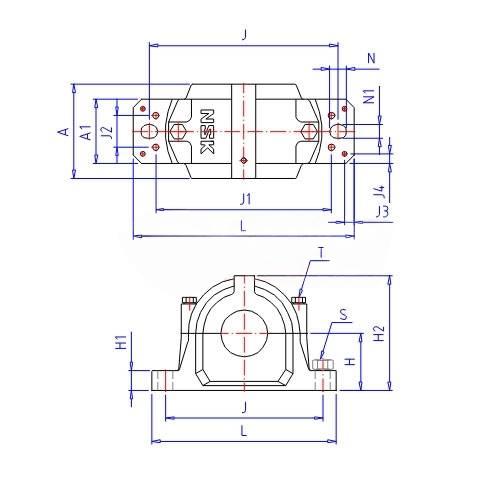

| Dimensions | |||
| D (type) | 215 | mm | Diameter |
|---|---|---|---|
| H | 140 | mm | Length |
| J | 350 | mm | Length |
| N (type) | Series 32 | mm | Length |
| N1 | 26 | mm | Length |
| A (type) | 185 | mm | Length |
| L | 410 | mm | Length |
| A1 | 120 | mm | Length |
| H1 | 45 | mm | Length |
| Series H2 | 271 | mm | Length |
| Series G | 86 | mm | Length |
| J1 | 320 | mm | Length |
| J2 | 74 | mm | Length |
| J3 | 18 | mm | Length |
| J4 | 18 | mm | Length |
| T (type) | M20 | mm | Specification |
| S | M24 | mm | Specification |
