- TIMKEN 68514442928
- Brand:TIMKEN

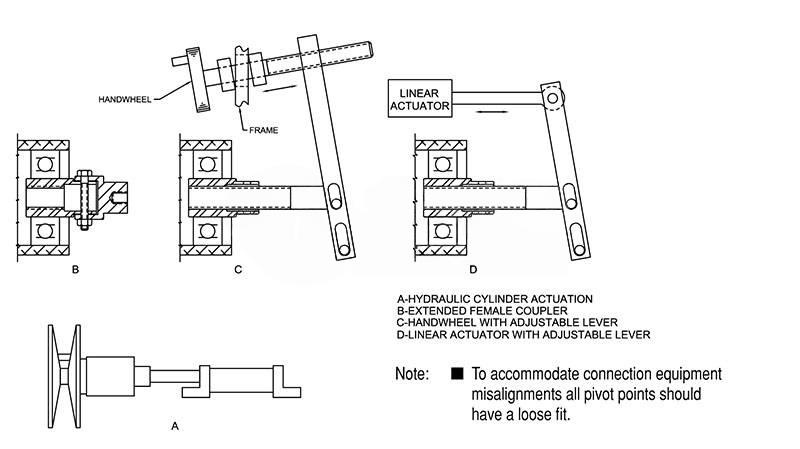

- Type series:Hexadrive Series Model HLA-30 Adjustable Pulleys w/ Hexact Linear Actuation Method - Imperial
- Model:68514442928
Product parameters
| Specifications | |||

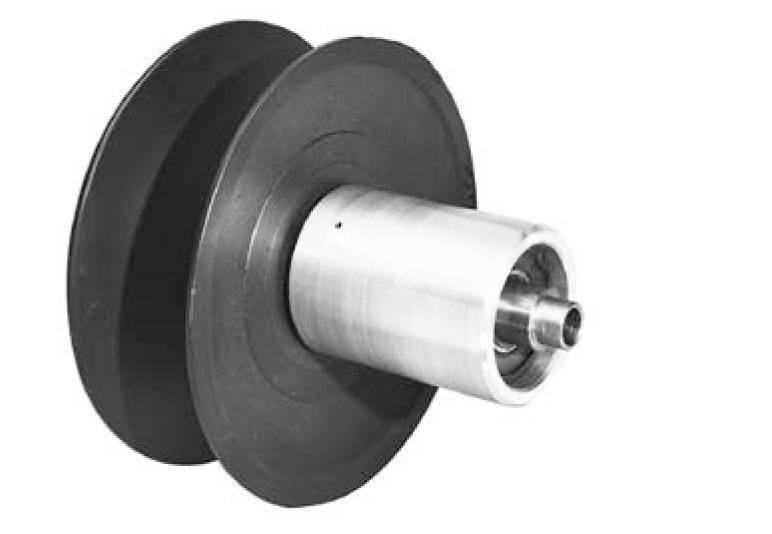

| Description | HLA-30 1-5/8 PULLEY | ||
|---|---|---|---|
| Model | HLA-30 | ||
| Type | Adjustable Center - Driver | ||
| Belt Size | 4430V | ||
| Weight | 46.00 lb | ||
| UPC Number | 42928 | ||

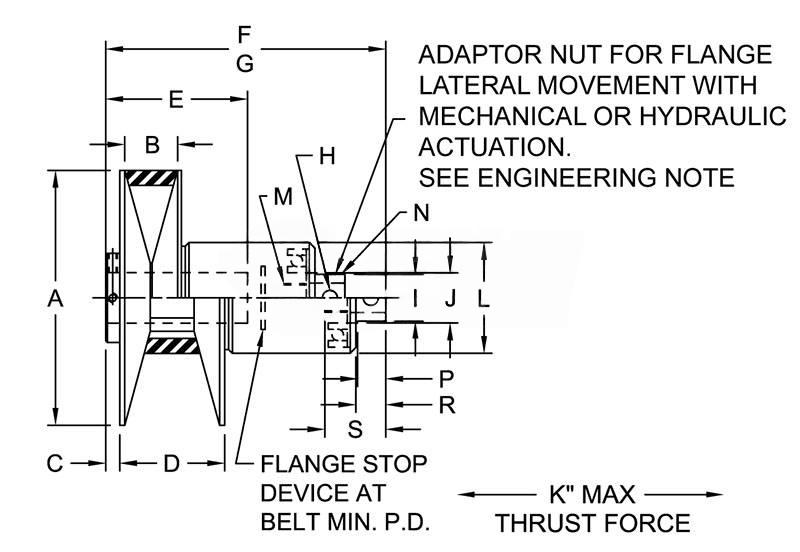

| Dimensional Data | |||
| Bore Diameter | 1 5/8 in | ||
|---|---|---|---|
| Outside Diameter (Dimension A) | 12.500 in | ||
| Belt Top Width (Dimension B) | 2.750 in | ||
| Dimension C | 19.81 mm 0.780 in | ||
| Distance at Min. PD (Dimension D) | 5.190 in | ||
| Bore Depth (Dimension E) | 7.500 in | ||
| Max. Opening Distance (Dimension F) | 12.830 in | ||
| Min. Opening Distance (Dimension G) | 10.810 in | ||
| Thru Hole (Dimension H) | 0.390 in | ||
| Distance Across Flats (Dimension I) | 1.480 in | ||
| Nut Diameter (Dimension J) | 1.570 in | ||
| Max. Thrust (Dimension K) | 1015.00 lb | ||
| Diameter (Dimension L) | 4.500 in | ||
| Thread (Dimension M) | 3/4-10 UNC | ||
| Max. Depth (Dimension N) | 0.87 in Diameter x 1.62 in | ||
| Flat Length (Dimension P) | 1.000 in | ||
| Dimension R | 28.45 mm 1.120 in | ||
| Max. Depth (Dimension S) | 3.000 in | ||
| Cubic inches | 2004.68750 in3 | ||
