Product Details
- TIMKEN E-TTU-TRB-2 3/16
- Brand: TIMKEN
- Type series: Type E take-up bearing with top angle housing
- Model: E-TTU-TRB-2 3/16
Product parameters
| Specifications | |||
| Shaft Size | 2.1875 in | ||
|---|---|---|---|
| Shaft Size Type | Imperial | ||
| Weight | 16 lb | ||
| UPC Code | 053893778495 | ||

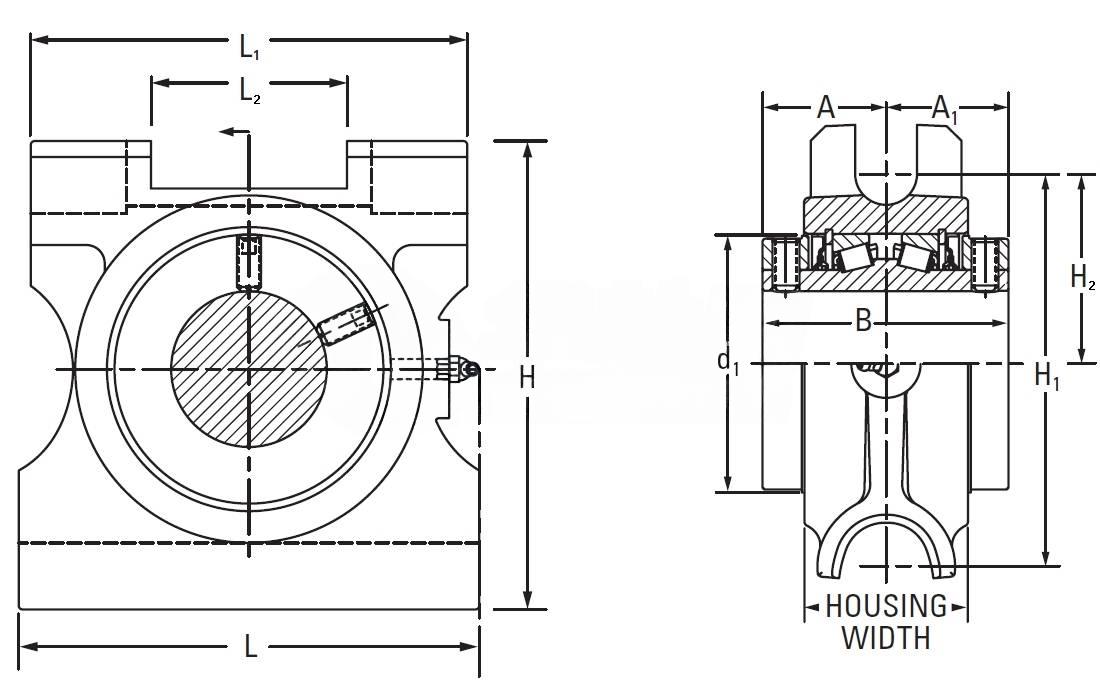

| Dimensions | |||
| Dimension B (type) | 3-3/4 in | ||
|---|---|---|---|
| Dimension H | 6-7/Series 8 in | ||
| Dimension H1 | Series 5-Series 13/16 in | ||
| Dimension Series H2 | 2.88 in | ||
| Dimension d1 | 3-3/4 in | ||
| Dimension A (type) | 1-7/Series 8 in | ||
| Dimension A (type)1 | 1-7/Series 8 in | ||
| Housing Width | 2-Series 9/16 in | ||
| Dimension L | 6-3/4 in | ||
| Dimension L1 | 7 in | ||
| Dimension L2 | 4.22 in | ||
| Radial and Thrust Factors; Speed and Slip-Fit Load Limits | |||
| e | 0.36 | ||
|---|---|---|---|
| X (if F (type)a/F (type)r ≤ e) | 0.87 | ||
| Y (if F (type)a/F (type)r ≤ e) | 2.38 | ||
| X (if F (type)a/F (type)r > e) | 0.7 | ||
| Y (if F (type)a/F (type)r > e) | 2.87 | ||
| K (type) Factor | 1.65 | ||
| C (type)0 Static Load Rating | 48200 lb | ||
| Note | |||
| Note | Note: All units have a 1/Series 8" pipe thread grease fitting The Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occurs. The values shownare valid only when two collars and set screws are used. When heavy thrust forces are applied, the friction between the pillow block base may not be sufficient to prevent movement. Mechanical stops or shear bars withstrength sufficient to support the load should be added. Never weld the pillow block or bearing to secure it to the shaft or base. | ||
|---|---|---|---|
