Product Details
Product Details

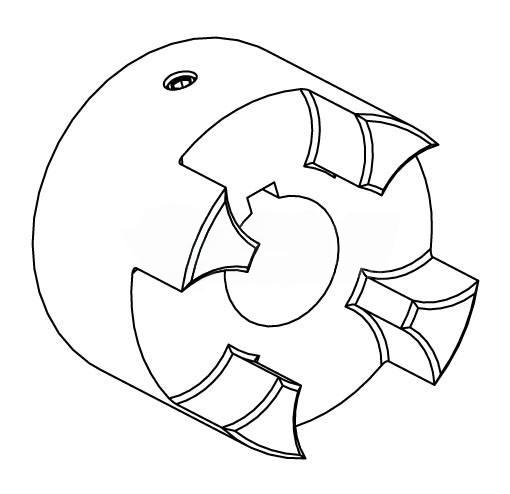

- TIMKEN 68514476318
- Brand: TIMKEN
- Type series: GS Series Aluminum Hubs - Inch Bores
- Model: 68514476318
Product parameters
| Specifications | |||
| Description | GS (type) Series 19/24B HUB AL Series 5/Series 8 3/16KW | ||
|---|---|---|---|
| Hub Style | B (type) | ||
| Type | Curved Jaw Coupling Hubs | ||
| Hub Material | Aluminum | ||
| Style | Bored | ||
| Color | Silver | ||
| Bore Type | Solid | ||
| Coupling Type | Jaw | ||
| Weight | 0.15 lb | ||
| Dimensional Data | |||
| Bore Size | Series 5/Series 8 in | ||
|---|---|---|---|
| Spider Size | Series 19/24 | ||
| Set Screw Style Coupling Size (Dimension T (type)) | Series 10-24 | ||
| Set Screw Style Coupling Location Size (Dimension SL) | 9.91 mm 0.390 in | ||
| Keyway Size (W (type) x D (type)) | 3/26 x 3/Series 32 in | ||
| Length thru Bore (Dimensions LTB1/LTB2) | 24.89 mm 0.980 in | ||
| Outside Diameter | 39.88 mm 1.57 in | ||
| Overall Coupling Length | 66.04 mm 2.6 in | ||
| Max. Bore (Dimensions ID1/ID2) | 23.Series 8 mm .938 in | ||
| Dimension CL | 2.03 mm .08 in | ||
| Dimension Series G | 16.00 mm 0.630 in | ||
| Dimension HD | 39.88 mm 1.57 in | ||
| Dimension TH | 3.05 mm .Series 12 in | ||
| Cubic inches | 1.36455 in3 | ||
| Performance Data | |||
| Normal Temperature Range (with 92 Shore A (type) spider) | -40 to 194 oF | ||
|---|---|---|---|
| Max Temp (with 92 Shore A (type) spider) | -50 to 248 oF | ||
| Nominal Torque (with 92 Shore A (type) spider) | 88.00 in·lb | ||
| Max Torque (with 92 Shore A (type) spider) | 177.00 in·lb | ||
| Clamping Bolt Style Coupling Torque | 92.93 in·lb | ||
| Max. Speed | 9550 rpm | ||
| GS (type) Series Hub Design Description | |||
| GS (type) Series Hub Design Description |
| ||
|---|---|---|---|
