Product Details
Product Details

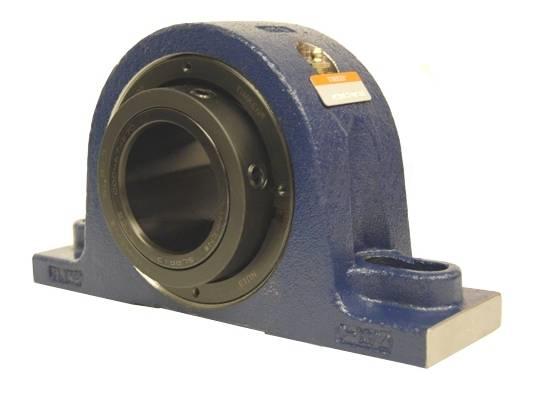

- TIMKEN QAPL18A090S
- Brand:TIMKEN
- Type series:onesameEccentric lockingDoubleboltWithHousingBearing
- Model:QAPL18A090S
- Weight:20.4Kg
Product parameters
| Specifications | |||
| Engineering Group | Mounted Bearing | ||
|---|---|---|---|
| Bearing Number | 22218 | ||
| Shaft Size | 90 mm | ||
| Shaft Size Type | Metric | ||
| Full Timken Part Number | QAPL18A090ST | ||
| Locking Style | Single Concentric | ||
| Weight | 20.40 Kg 45 lb | ||
| Housing Construction | Two-Bolt Pillow Block | ||
| UPC Code | 0883450266253 | ||
| Dimensions | |||
| Dimension A | 95.3 mm 3.75 in | ||
|---|---|---|---|
| Dimension B | 195.3 mm 7.69 in | ||
| Dimension C | 130.3 mm 5.13 in | ||
| Dimension D Max | 273.1 mm 10.75 in | ||
| Dimension D Min | 235.0 mm 9.25 in | ||
| Dimension F | 330.20 mm 13.000 in | ||
| Dimension G | 86.60 mm 3.410 in | ||
| Dimension H | 47.8 mm 1.88 in | ||
| Dimension J (Bolt Size) | 24 mm 0.875 in | ||
| Dimension KA | 36.6 mm 1.44 in | ||
| Dimension L | 109.2 mm 4.3 in | ||
| Dimension M | 65.8 mm 2.59 in | ||
| Dimension RA | 6.9 mm 0.27 in | ||
| Dimension SA | 102.4 mm 4.03 in | ||
| Radial and Thrust Factors | |||
| C0 - Static Load | 87200 lb 388 kN | ||
|---|---|---|---|
| C - Dynamic Load (Basic) | 79700 lb 355 kN | ||
| e - Geometry Factor | 0.23 | ||
| Y1 - Geometry Factor | 2.90 | ||
| Y2 - Geometry Factor | 4.31 | ||
| Engineering Seal Speed | |||
| Oil Lubrication - M/N Seal | 1400 rpm | ||
|---|---|---|---|
| Oil Lubrication - T Seal | 2400 rpm | ||
| Oil Lubrication - B/C/O Seal | 1000 rpm | ||
| Grease Lubrication - M/N Seal | 1400 rpm | ||
| Grease Lubrication - T Seal | 2000 rpm | ||
| Grease Lubrication - B/C/O Seal | 1000 rpm | ||
| Engineering Bearing Attributes | |||
| Float | 2.108 mm 0.083 in | ||
|---|---|---|---|
| Shaft Tolerance | 0.076 mm 0.0030 in | ||
| Engineering Internal Radial Clearance | |||
| Eng Internal Radial Clearance - Min | 0.0024 | ||
|---|---|---|---|
| Eng Internal Radial Clearance - Max | 0.0039 | ||
| Pre Install Clearance Min | 0.060 mm 0.0024 in | ||
| Pre Install Clearance Max | 0.100 mm 0.0039 in | ||
