Product Details
Product Details

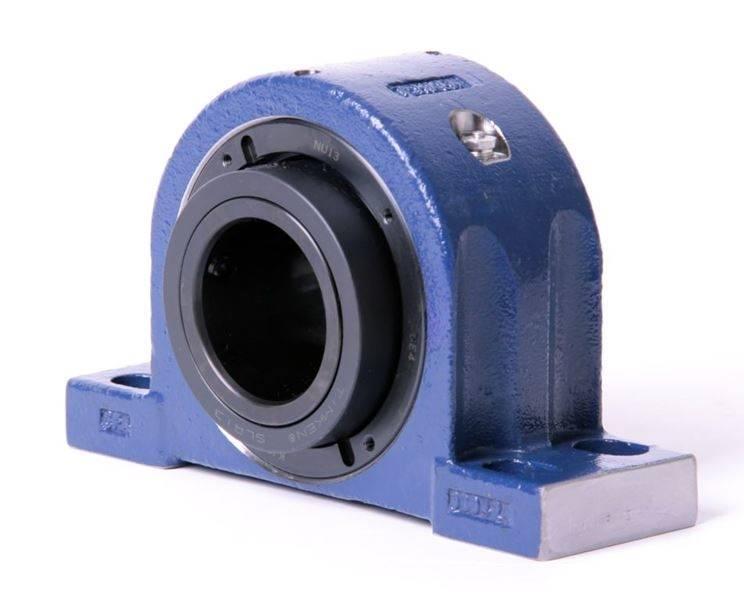

- TIMKEN QAPF20A315S
- Brand:TIMKEN
- Type series:sameEccentric lockingWithHousingBearing
- Model:QAPF20A315S
- Weight:30.4Kg
Product parameters
| Specifications | |||
| Engineering Group | Mounted Bearing | ||
|---|---|---|---|
| Bearing Number | 22220 | ||
| Shaft Size | 3-15/16 in | ||
| Shaft Size Type | Imperial | ||
| Full Timken Part Number | QAPF20A315ST | ||
| Locking Style | Single Concentric | ||
| Weight | 30.400 Kg 67 lb | ||
| Housing Construction | Four-Bolt Pillow Block | ||
| UPC Code | 0883450266802 | ||
| Dimensions | |||
| Dimension A | 108.0 mm 4.25 in | ||
|---|---|---|---|
| Dimension B | Series 223 mm 8.780 in | ||
| Dimension C | 152.4 mm 6.00 in | ||
| Dimension D Max | 339.9 mm 13.38 in | ||
| Dimension D Min | 276.4 mm 10.88 in | ||
| Dimension E | 57.2 mm 2.25 in | ||
| Dimension F | 378.0 mm 14.88 in | ||
| Dimension G | 109.50 mm 4.310 in | ||
| Dimension H | 35.6 mm 1.40 in | ||
| Dimension J (Bolt Size) | 20 mm 0.750 in | ||
| Dimension KA | 41.4 mm 1.63 in | ||
| Dimension L | 130.3 mm 5.13 in | ||
| Dimension M | 75.4 mm 2.97 in | ||
| Dimension RA | 8.9 mm 0.35 in | ||
| Dimension SA | 116.6 mm 4.59 in | ||
| Radial and Thrust Factors | |||
| C0 - Static Load | 113000 lb 502 kN | ||
|---|---|---|---|
| C - Dynamic Load (Basic) | 97700 lb 435 kN | ||
| e - Geometry Factor | 0.24 | ||
| Y1 - Geometry Factor | 2.85 | ||
| Y2 - Geometry Factor | 4.24 | ||
| Engineering Seal Speed | |||
| Oil Lubrication - M/N Seal | 1200 rpm | ||
|---|---|---|---|
| Oil Lubrication - T Seal | 2000 rpm | ||
| Oil Lubrication - B/C/O Seal | 900 rpm | ||
| Grease Lubrication - M/N Seal | 1200 rpm | ||
| Grease Lubrication - T Seal | 1600 rpm | ||
| Grease Lubrication - B/C/O Seal | 900 rpm | ||
| Engineering Bearing Attributes | |||
| Float | 2.108 mm 0.083 in | ||
|---|---|---|---|
| Shaft Tolerance | 0.076 mm 0.0030 in | ||
| Engineering Internal Radial Clearance | |||
| Eng Internal Radial Clearance - Min | 0.0030 | ||
|---|---|---|---|
| Eng Internal Radial Clearance - Max | 0.0047 | ||
| Pre Install Clearance Min | 0.075 mm 0.0030 in | ||
| Pre Install Clearance Max | 0.120 mm 0.0047 in | ||
