Product Details
Product Details

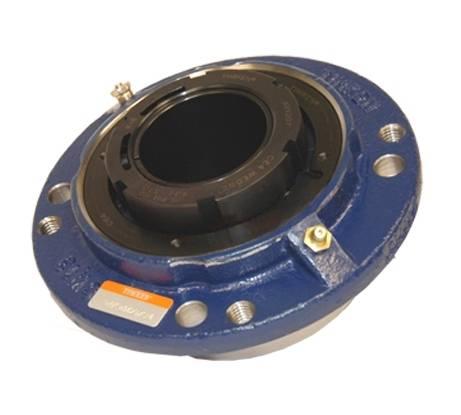

- TIMKEN QVCW28V415S
- Brand:TIMKEN
- Type series:VLockingGuideFlangeCylindricalWithHousingBearing
- Model:QVCW28V415S
- Weight:46.3Kg
Product parameters
| Specifications | |||
| Engineering Group | Mounted Bearing | ||
|---|---|---|---|
| Bearing Number | 22228 | ||
| Shaft Size | 4-15/16 in | ||
| Shaft Size Type | Imperial | ||
| Full Timken Part Number | QVCW28V415ST | ||
| Locking Style | Single V-Lock | ||
| Weight | 46.300 Kg 102 lb | ||
| Housing Construction | Piloted Flange Cartridge | ||
| UPC Code | 0883450140461 | ||
| Dimensions | |||
| Dimension BC | 323.9 mm 12.75 in | ||
|---|---|---|---|
| Dimension C | 190.000 mm 7.480 in | ||
| Dimension E | 162.1 mm 6.38 in | ||
| Dimension B Fix | 66.5 mm 2.62 in | ||
| Dimension B Exp | 68.6 mm 2.70 in | ||
| Dimension F | 374.7 mm 14.75 in | ||
| Dimension H | 26.2 mm 1.03 in | ||
| Dimension J (Bolt Size) | 24 mm 0.875 in | ||
| Dimension L | 144.5 mm 5.69 in | ||
| Dimension RV | 3.3 mm 0.13 in | ||
| Dimension SV | 147.8 mm 5.82 in | ||
| Dimension G | 279.4 mm 11.000 in | ||
| Dimension N | 78.0 mm 3.07 in | ||
| Radial and Thrust Factors | |||
| C0 - Static Load | 237000 lb 1060 kN | ||
|---|---|---|---|
| C - Dynamic Load (Basic) | 194000 lb 863 kN | ||
| e - Geometry Factor | 0.25 | ||
| Y1 - Geometry Factor | 2.67 | ||
| Y2 - Geometry Factor | 3.98 | ||
| Engineering Seal Speed | |||
| Oil Lubrication - M/N Seal | 650 rpm | ||
|---|---|---|---|
| Oil Lubrication - T Seal | 1200 rpm | ||
| Oil Lubrication - B/C/O Seal | 350 rpm | ||
| Grease Lubrication - M/N Seal | 650 rpm | ||
| Grease Lubrication - T Seal | 900 rpm | ||
| Grease Lubrication - B/C/O Seal | 350 rpm | ||
| Engineering Bearing Attributes | |||
| Float | 2.108 mm 0.083 in | ||
|---|---|---|---|
| Shaft Tolerance | 0.127 mm 0.0050 in | ||
| Engineering Internal Radial Clearance | |||
| Eng Internal Radial Clearance - Min | 0.0063 | ||
|---|---|---|---|
| Eng Internal Radial Clearance - Max | 0.0079 | ||
| Pre Install Clearance Min | 0.160 mm 0.0063 in | ||
| Pre Install Clearance Max | 0.201 mm 0.0079 in | ||
