Product Details
Product Details
- TIMKEN QMPX15J070S
- Brand: TIMKEN
- Type series: Four-bolt flanged bearing with eccentric locking collar
- Model: QMPX15J070S
- Weight: 12.7Kg
Product parameters
| Specifications | |||
| Engineering Group | Mounted Bearing | ||
|---|---|---|---|
| Bearing Number | 22215 | ||
| Shaft Size | 70 mm | ||
| Shaft Size Type | Metric | ||
| Full Timken Part Number | QMPX15J070ST | ||
| Locking Style | Eccentric | ||
| Weight | 12.7 Kg 28 lb | ||
| Housing Construction | Four-Bolt Pillow Block | ||
| UPC Code | 0883450253093 | ||

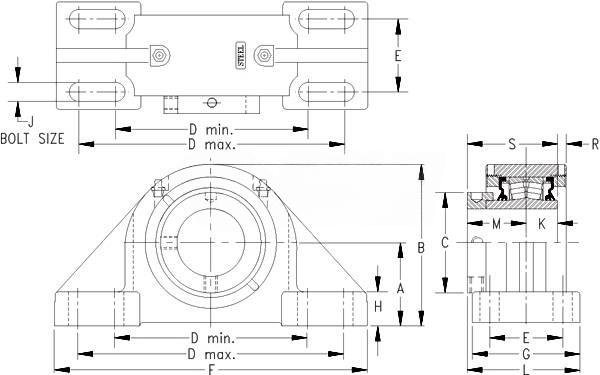

| Dimensions | |||
| Dimension A (type) | 88.9 mm 3.50 in | ||
|---|---|---|---|
| Dimension B (type) | 173.5 mm 6.83 in | ||
| Dimension C (type) | 101.9 mm 4.01 in | ||
| Dimension D (type) Max | 265.2 mm Series 10.44 in | ||
| Dimension D (type) Min | 230.1 mm 9.06 in | ||
| Dimension E | 69.9 mm 2.75 in | ||
| Dimension F (type) | 330.20 mm 13.000 in | ||
| Dimension Series G | 108.00 mm 4.2500 in | ||
| Dimension H | 39.1 mm 1.54 in | ||
| Dimension K (type) | 31.Series 8 mm 1.25 in | ||
| Dimension L | 114.3 mm 4.50 in | ||
| Dimension Series M | 60.2 mm 2.37 in | ||
| Dimension R | 7.1 mm 0.28 in | ||
| Dimension S | 91.9 mm 3.62 in | ||
| Radial and Thrust Factors | |||
| C0 - Static Load | 54100 lb 240 kN | ||
|---|---|---|---|
| C (type) - Dynamic Load (Basic) | 49900 lb Series 222 kN | ||
| e - Geometry Factor | 0.22 | ||
| Y1 - Geometry Factor | 3.14 | ||
| Y2 - Geometry Factor | 4.67 | ||
| Engineering Seal Speed | |||
| Oil Lubrication - Series M/N (type) Seal | 1600 rpm | ||
|---|---|---|---|
| Oil Lubrication - T (type) Seal | 2900 rpm | ||
| Oil Lubrication - B (type)/C (type)/O Seal | 1300 rpm | ||
| Grease Lubrication - Series M/N (type) Seal | 1600 rpm | ||
| Grease Lubrication - T (type) Seal | 2400 rpm | ||
| Grease Lubrication - B (type)/C (type)/O Seal | 1300 rpm | ||
| Engineering Bearing Attributes | |||
| Float | 2.108 mm 0.083 in | ||
|---|---|---|---|
| Shaft Tolerance | 0.051 mm 0.0020 in | ||
| Engineering Internal Radial Clearance | |||
| Eng Internal Radial Clearance - Min | 0.0020 | ||
|---|---|---|---|
| Eng Internal Radial Clearance - Max | 0.0031 | ||
| Pre Install Clearance Min | 0.050 mm 0.0020 in | ||
| Pre Install Clearance Max | 0.080 mm 0.0031 in | ||
